junair Jun-Air OF 302-4B Quiet Running Compressor - 38 l/min at 8 bar

Jun-Air Silent Compressor

Here we offer you a Jun-Air silent compressor.

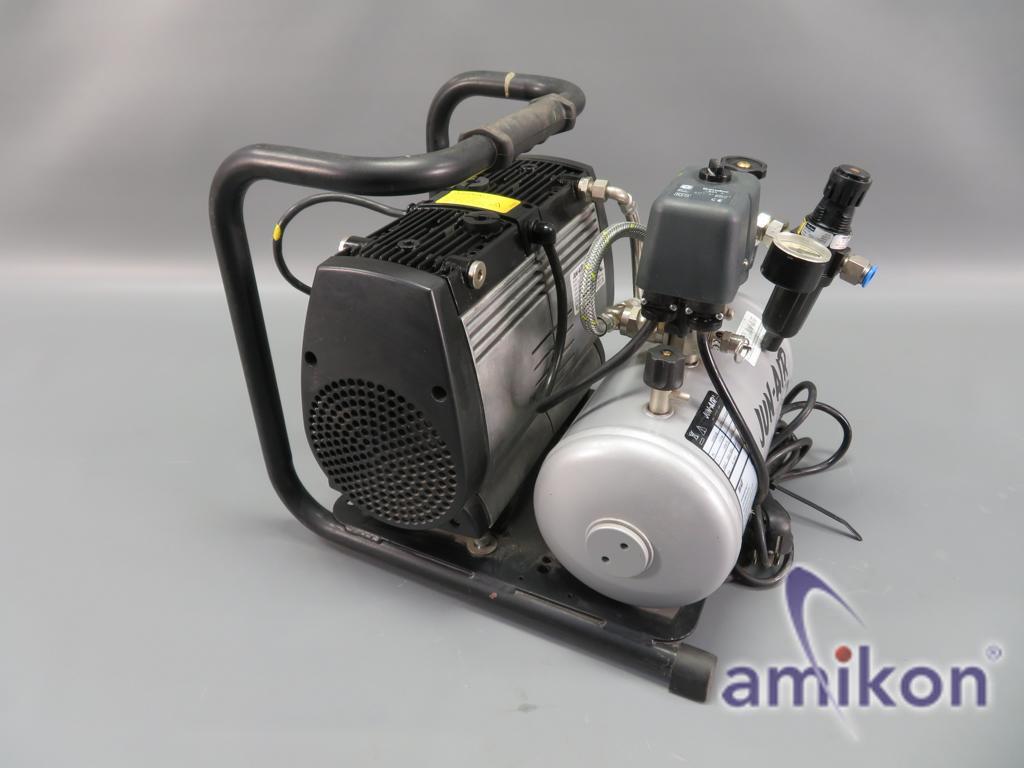

Jun-Air OF 302-4B Silent Compressor - 38 l/min at 8 bar

Application area:

JUN-AIR Compressor Model OF302-4B - Oil-free two-cylinder reciprocating compressor with 4 l pressure tank

Application:

Oil-free compressor
4 l pressure tank mounted on frame
multiple air supply options
adjustable metal vibration bearings
flexible application possibilities
also suitable for retrofitting existing systems
horizontal installation possible
ideal for installation in OEM applications
2-frequency drive motor

Technical data:

Suction capacity - 108 l/min
Delivery capacity - 38 l/min at 8 bar
Noise level - 65 dB(A)
Cylinders per compressor - 2
Pressure tank volume - 4 l
Permissible ambient temperature - +1°C to +40°C
Supply voltage - 230 V, 50 Hz
Motor power - 0.44 kW
Current consumption - 4.1 A
Thermal protection - Integrated
Duty cycle - 100 %
Weight - 22 kg
Dimensions (LxWxH) - 390 x 320 x 350 mm

Type: Jun-Air OF 302-4B

Condition: used

Scope of delivery: (See image)

(Changes and errors in the technical data are reserved!)

For further questions, we would be happy to answer them by phone.
