EM Test MPG 200 MPG 200B Micro-Pulse Generator

Micro-Pulse Generator

Here we offer you a Micro-Pulse Generator.

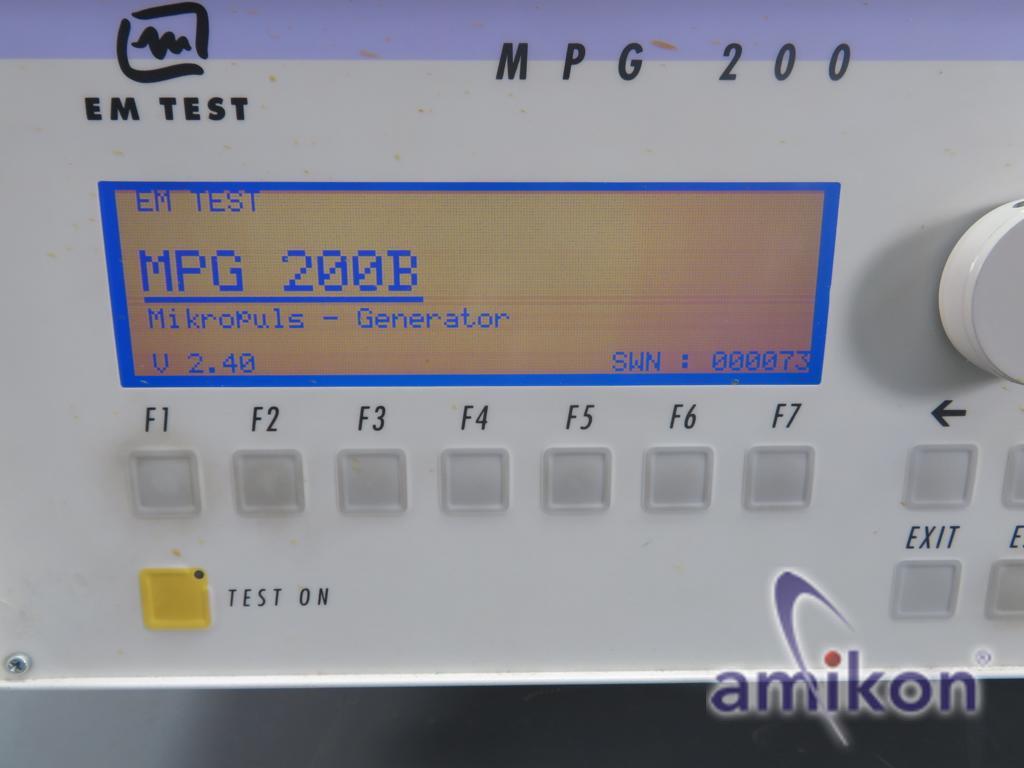

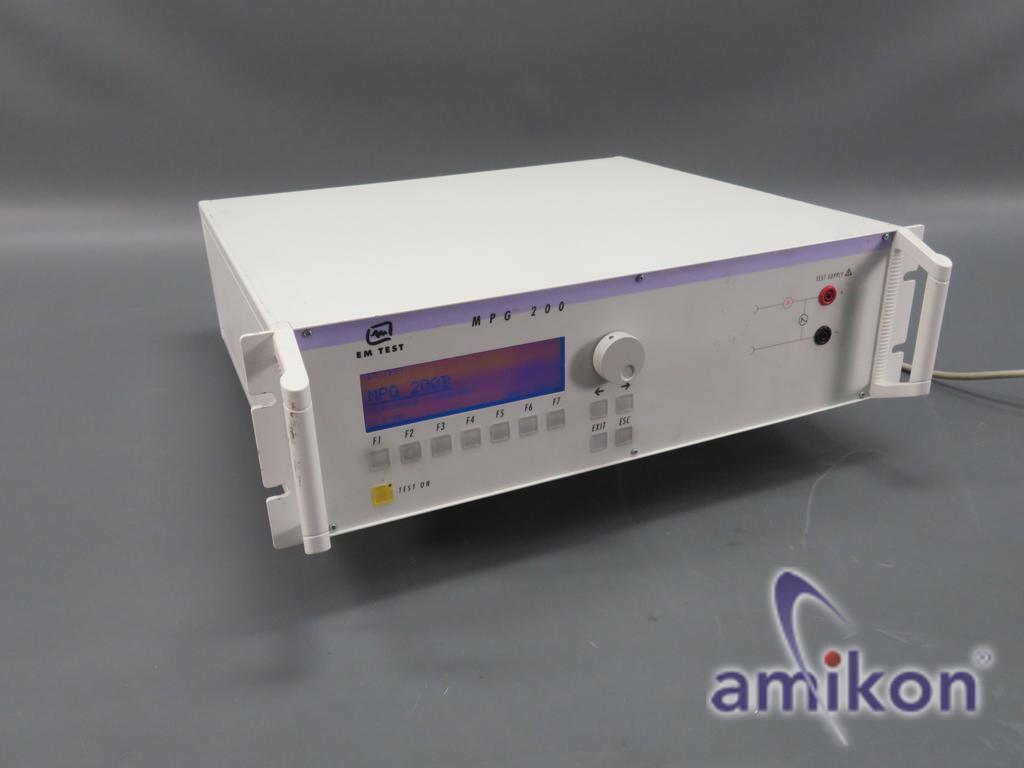

MPG 200 Micro-Pulse Generator

Technical Data:
Electroband Testing Device MPG
Repeatability: 0.1 %
Comparability of Measurement Results: according to IEC 60404-ff.
Setting Accuracy of the Set Value: according to IEC 60404-ff.
Maximum Current: ± 52 A
Maximum Voltage: ± 100 V
Coil Connections: up to 12 coils in parallel
Operating Mode: PC / Software
Model: Table or Cabinet Version
Measurement Frequency: 3 Hz – 20 kHz (optional DC),
DC with adjustable rise time for primary signals and flux change control d?/dt
Optional for higher harmonics 10 kHz to 100 kHz [in combination with additional amplifier ± 10 A / 50 V])
Polarization: 1 mT to max. 2 T (in steps of 0.001 T)
Adjustment Accuracy: better than 0.1 %
Power Supply: 3 x 400 V AC, Neutral, PE

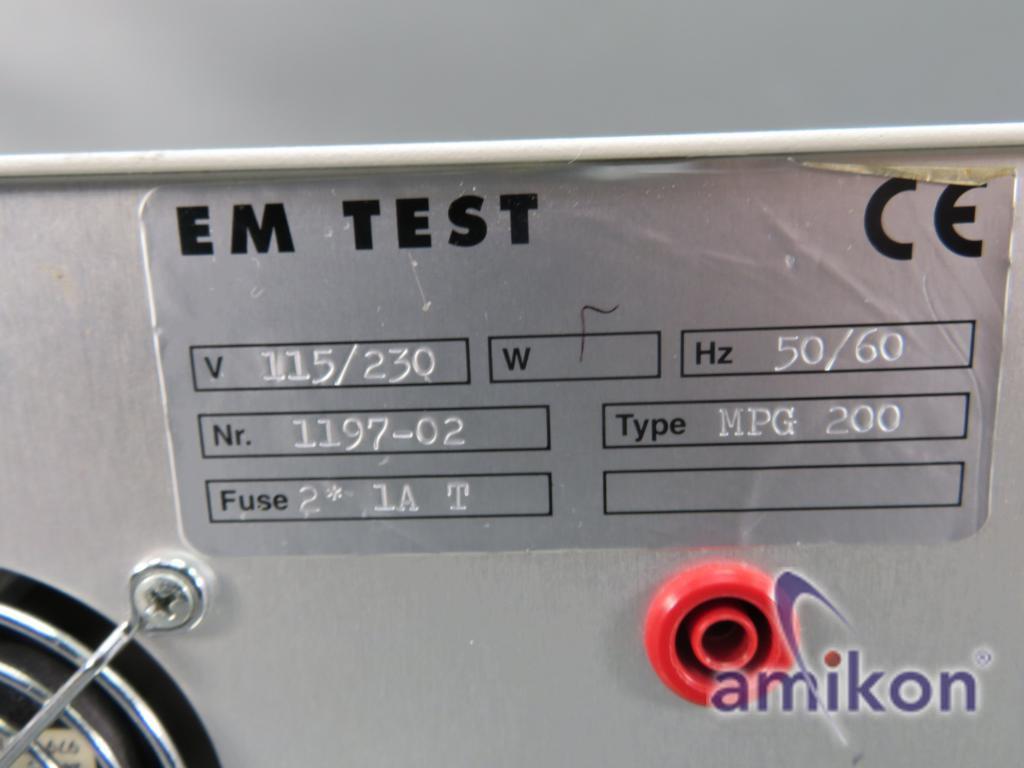

Type: MPG 200

Condition: used

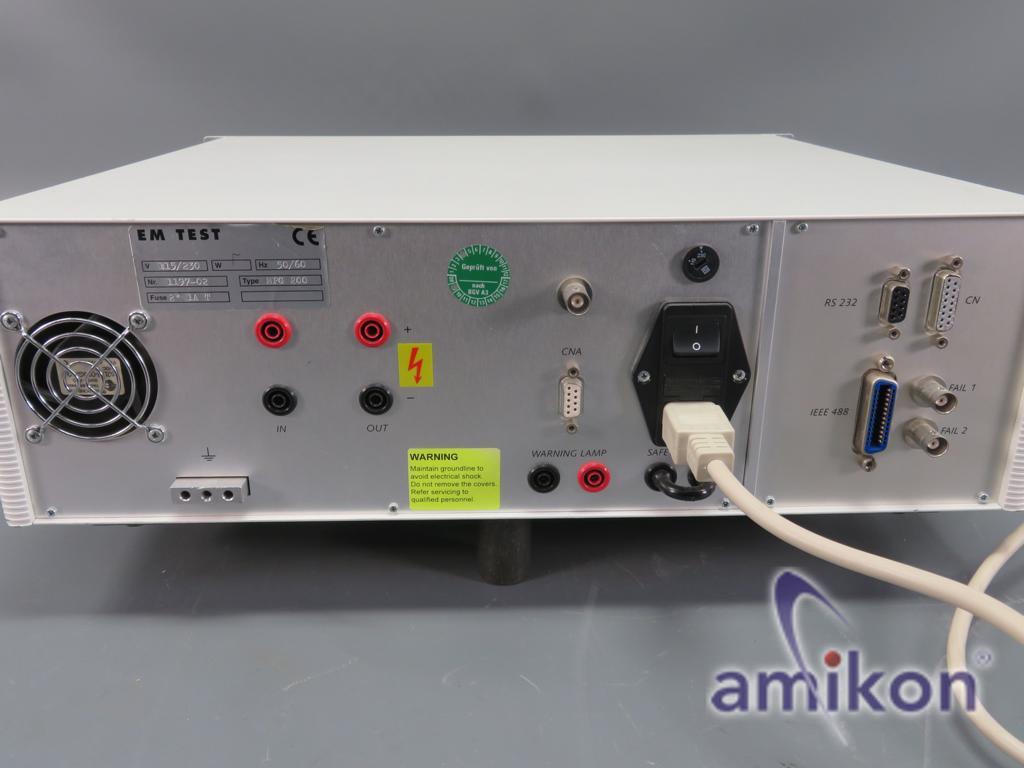

Scope of Delivery: (See Image)

(Changes and errors in the technical data, specifications are subject to change!)

We would be happy to answer any further questions by phone.
