Beckhoff Digital Compact Servo Amplifier AX5203-0000-0200

Beckhoff Digital Compact Servo Amplifier

Here we offer you a Beckhoff Digital Compact Servo Amplifier.

AX5203 | Digital Compact Servo Amplifier 2-channel

The single-channel servo amplifiers AX5000 provide an optimum of functionality, flexibility, and cost-effectiveness.
The components required for operation, such as power supply, EMC filter, and DC link capacitors, are already integrated.
The cascade-structured control loop supports fast and highly dynamic positioning tasks.
EtherCAT as a powerful system communication enables ideal integration with PC-based control technology.

Technical Data:

Function Servo Amplifier
Channels 2
Rated connection voltage 3 x 100…480 V AC ±10 %
DC link voltage max. 875 V DC
Rated output current (channel) 3 A
Peak output current (channel) 10 A
Feedback SinCos 1 Vss, Resolver, EnDat 2.1, Hiperface, BiSS B, OCT
System bus EtherCAT
Drive profile SERCOS™ profile for servo drives according to IEC 61800-7-204 (SoE)
Ambient temperature (operation) 0…+50 °C (see documentation)
Certifications/Markings CE, cULus, EAC

Dimensions
Height without connector 274 mm
Depth without connector 232 mm
Width 92 mm

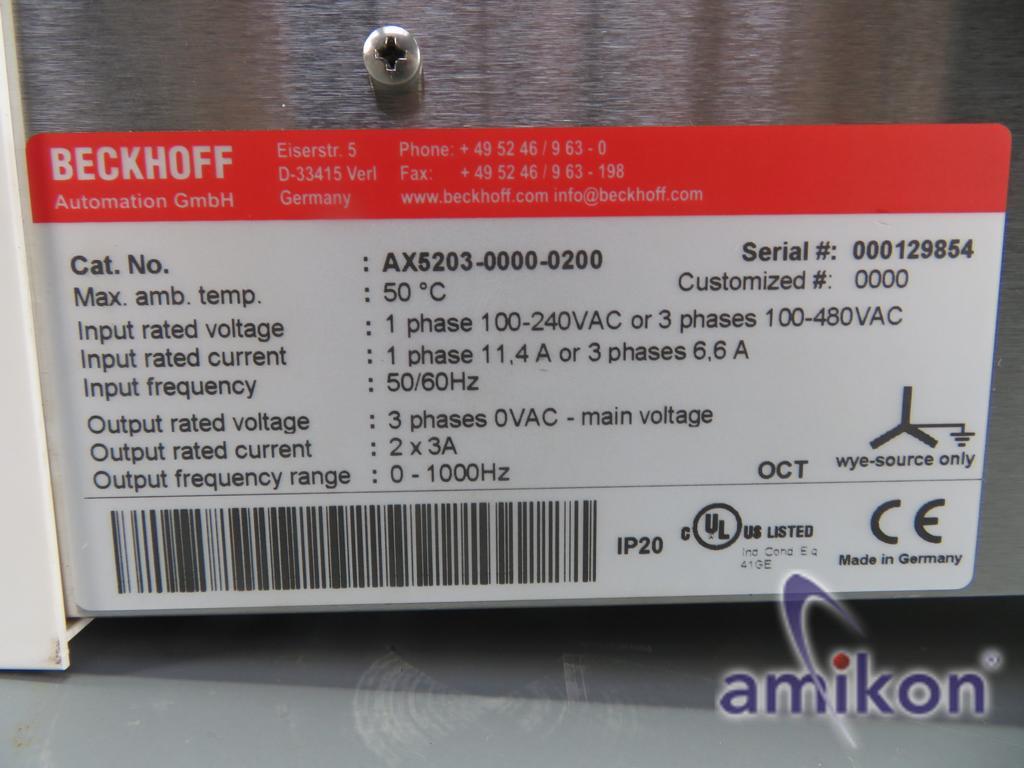

Type: AX5203-0000-0200

Condition: used

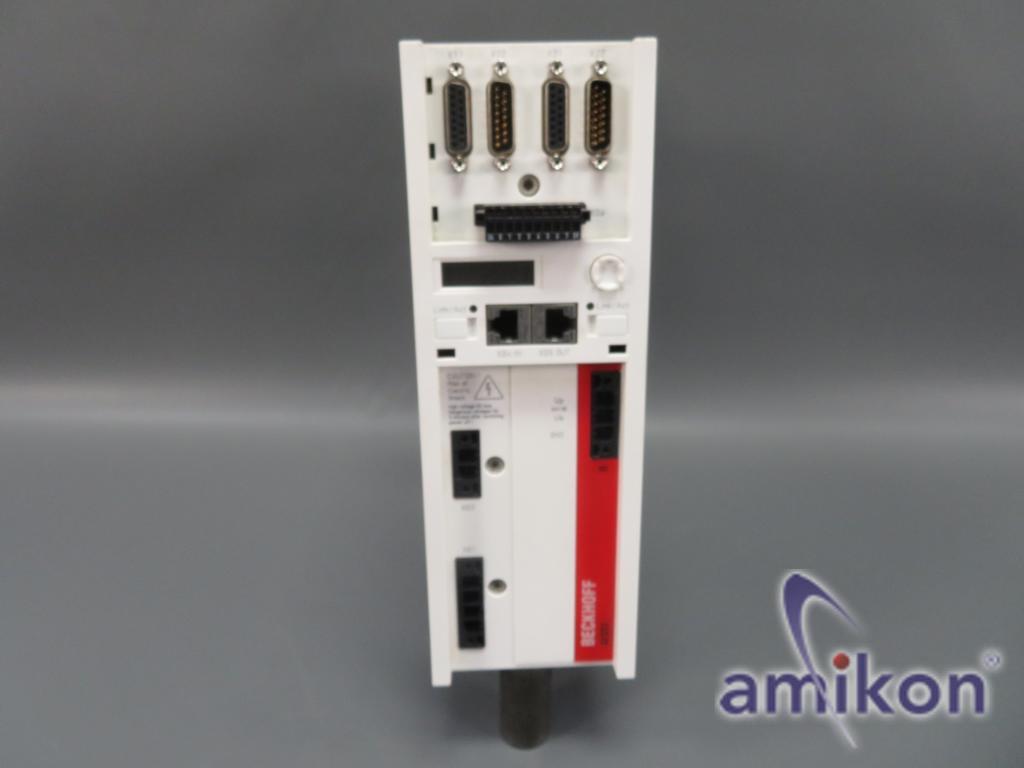

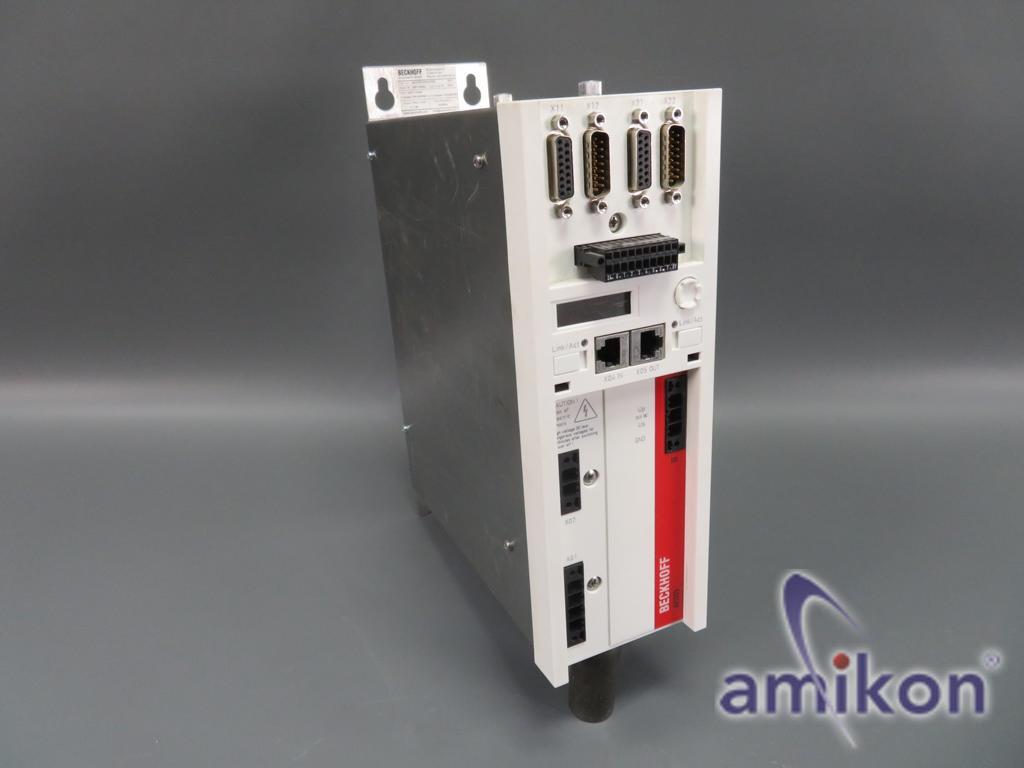

Scope of delivery: (See image)

(Changes and errors in the technical data, specifications are subject to change!)

We would be happy to answer any further questions by phone.
