Beckhoff Analog Output Terminal EL4004

Beckhoff Analog Output Terminal

Here we offer a Beckhoff output terminal.

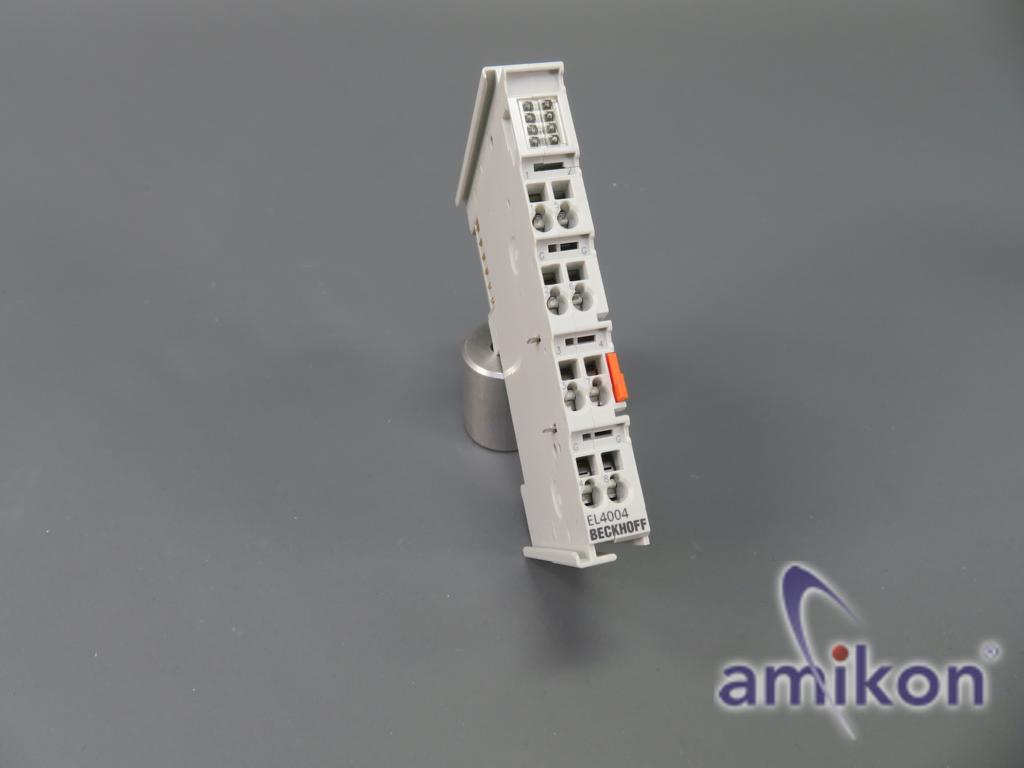

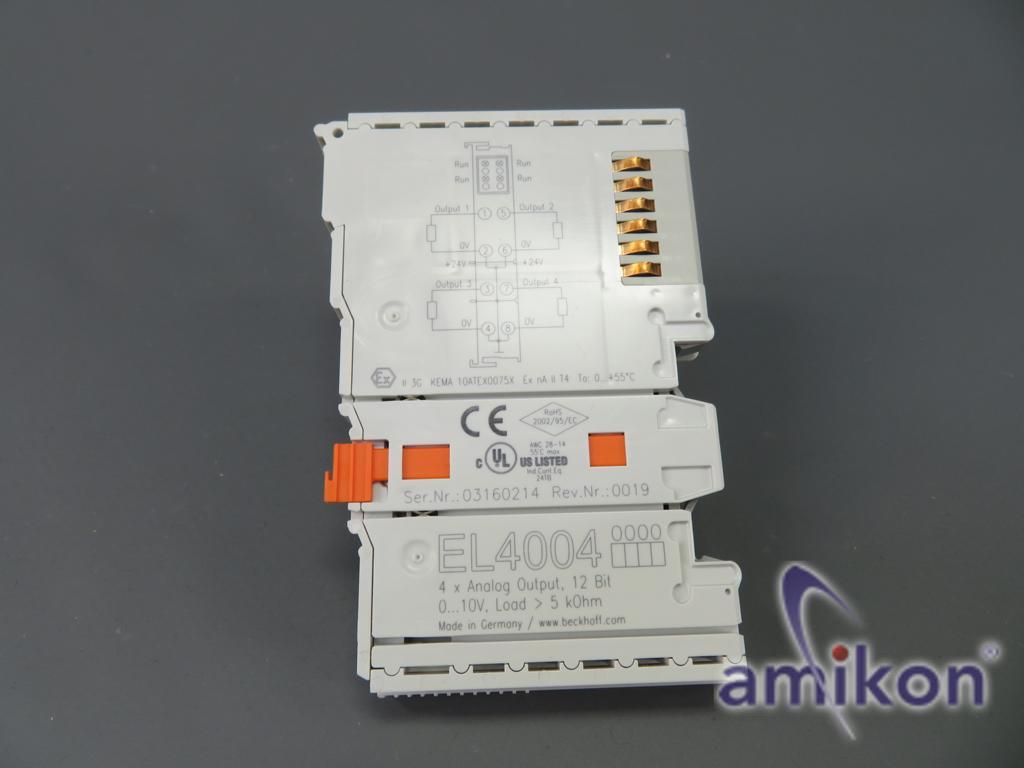

Beckhoff EL4004 | 4-Channel Analog Output Terminal 0…10 V, 12 Bit

The analog output terminal EL4004 generates signals in the range of 0 to 10 V.
The voltage is transmitted galvanically isolated to the process level with a resolution of 12 bits.
The output channels of the EtherCAT terminal share a common ground potential.
The EL4004 has four channels. The output stages are powered by a 24 V supply.
The signal status of the EtherCAT terminal is indicated by LEDs.

Type: EL4004

Condition: used

Scope of delivery: (See image)

(Changes and errors in technical data are reserved!)

If you have further questions, we would be happy to answer them by phone.
