ACSYS BARRACUDA® Dual FL70S Fiber Laser CNC Cutting & Engraving System 2020

ACSYS

Type: BARRACUDA® Custom Dual FL70S

ACSYS Laser Processing System BARRACUDA® Custom Dual FL70S
Fiber Laser – Industrial Laser System – Year 2020

For sale is a high-quality ACSYS laser processing system,
Type BARRACUDA Custom Dual FL70S, manufactured in Germany.
The machine is in very well-maintained condition and is a
professional industrial system for precise laser marking,
engraving and material processing.

The system is equipped with two air-cooled fiber lasers (2×70 W) and
is ideal for series production, industrial marking,
engraving, labeling and processing of complex components.
Thanks to its solid granite axis construction and fully enclosed safety cabin,
the machine operates with exceptional precision, reliability and safety (Laser Class 1).

Ideal for industry, metal processing, automotive suppliers, toolmaking, electronics,
nameplates, DataMatrix codes, barcodes, serial numbers and more.

Machine Capabilities:

High-precision laser engraving and marking on metal and many materials
Series marking, nameplates, QR / DataMatrix codes, logos, numbering
Processing of large layouts without offset (Large Field Removal Option)
3D component processing possible
Camera positioning system for precise workpiece alignment
Automated processes / industrial integration possible (PLC, Network, USB)
Low-maintenance, air-cooled fiber lasers with long service life
Fully enclosed, safe industrial system (Laser Class 1)

Equipment / Options:

Camera system LAS – Live Adjust System HD
Large Field Removal (LFR) – large-area processing without offset

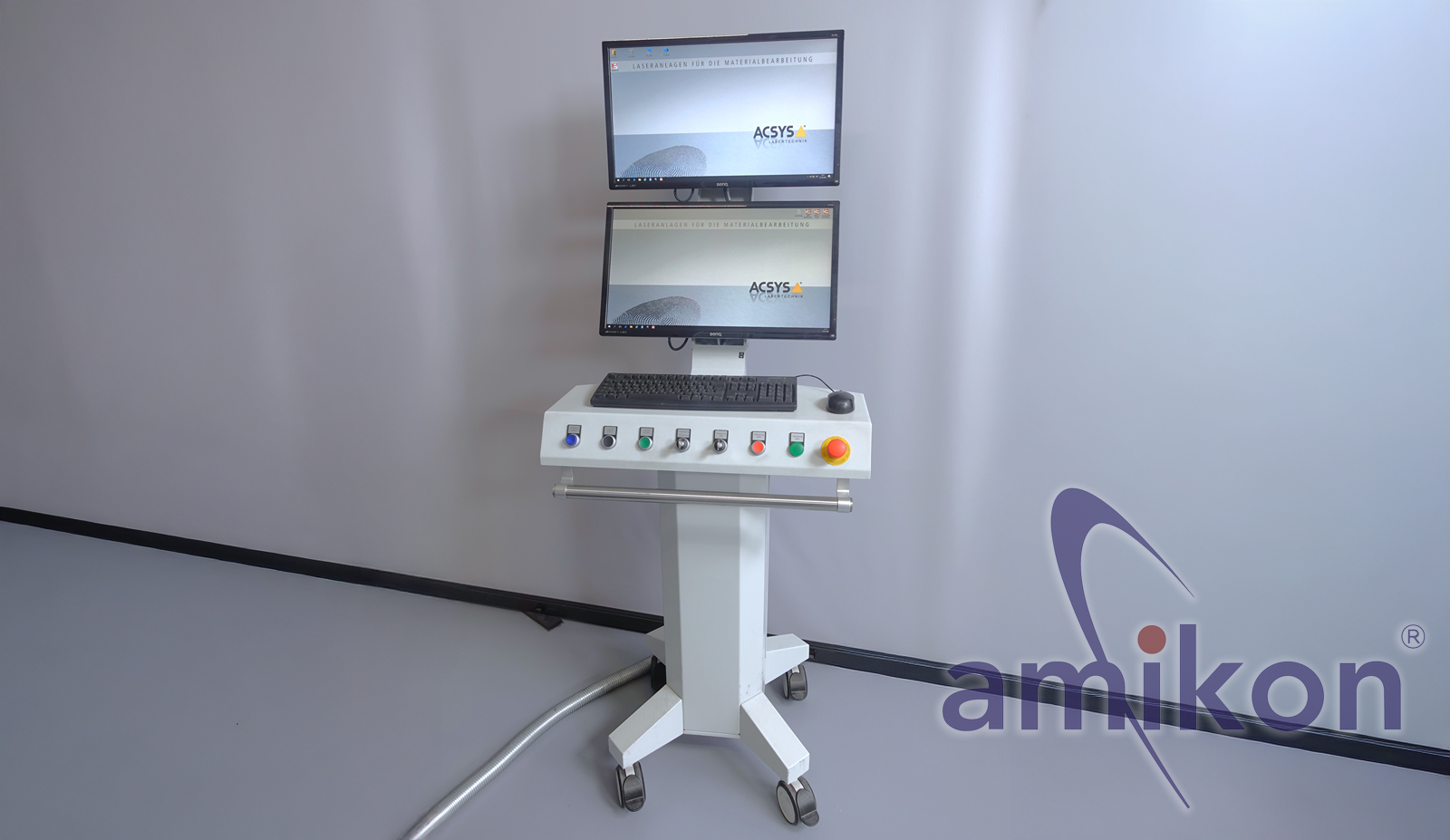

Industrial PC control with ACSYS Software Suite
Network / USB / PLC connectivity
Automatic door & safety monitoring
Lighting & signal tower
Air-conditioned control cabinet
Extraction and filtration system for laser fumes

Extraction & Filter Unit (ULT LAS 1500)
Max. air flow: 3,240 m³/h
Nominal air flow: 1,200 m³/h
Max. vacuum: 3,450 Pa
Power: approx. 2.2 kW

Weight: approx. 300 kg

Technical Data:

Machine
Manufacturer: ACSYS Lasertechnik GmbH (Made in Germany)
Type: BARRACUDA® Custom Dual FL70S
Year: 04/2020
Laser: 2 × fiber laser, each 70 Watt (air-cooled)
Wavelength: 1055 – 1070 nm
Working area: approx. 570 × 570 mm

Axis travel:
X: approx. 875 mm
Y: approx. 600 mm
Z: approx. 190 mm

Electrical Data:
Connection: 3AC / N / PE 400 V
Frequency: 50 Hz
Power consumption: approx. 5.5 kW

Dimensions & Weight:

Cabin width: approx. 2050 mm
Cabin height: approx. 2300 mm (approx. 2600 mm with signal tower)
Cabin depth: approx. 2850 mm

Total machine weight: approx. 3,800 kg

Condition: used

Scope of delivery: (see pictures)

(Subject to prior sale, errors and technical changes reserved.)

For further questions, please feel free to contact us by phone.
