3D Ultrasound Schneider 5-Axis Guided CFRP Trimming System Type: SM - 03

Fill

Type: Fill 5-Axis Guided CFRP Trimming System Type: SM - 03

Fill 3D ULTRASONIC CUTTER
3D ULTRASONIC CUTTER

The 3D Ultrasonic Cutter from Fill enables three-dimensional contour trimming
of fiber-reinforced plastics using ultrasound-driven cutting systems.

Your advantages:

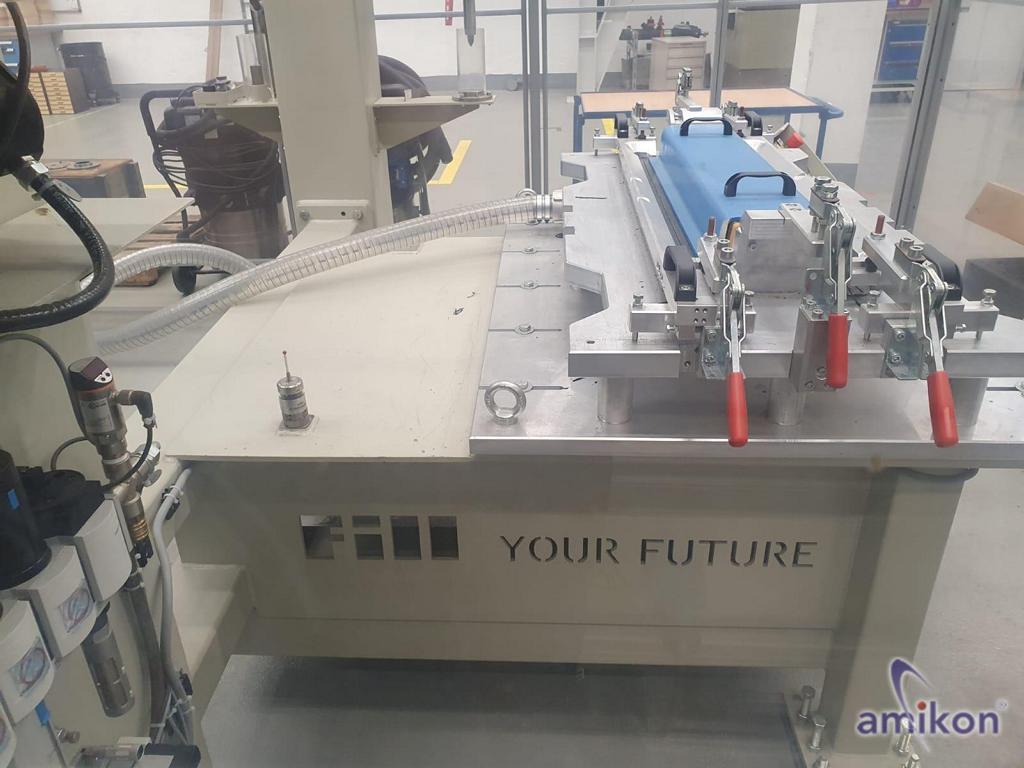

Ergonomic loading and unloading
Easy creation of trimming programs (NC control)
Space-saving system concept (alternative to robots)
High repeat accuracy
High process stability
Simple and quick tool change
Possible integration into an overall process chain

The principle:

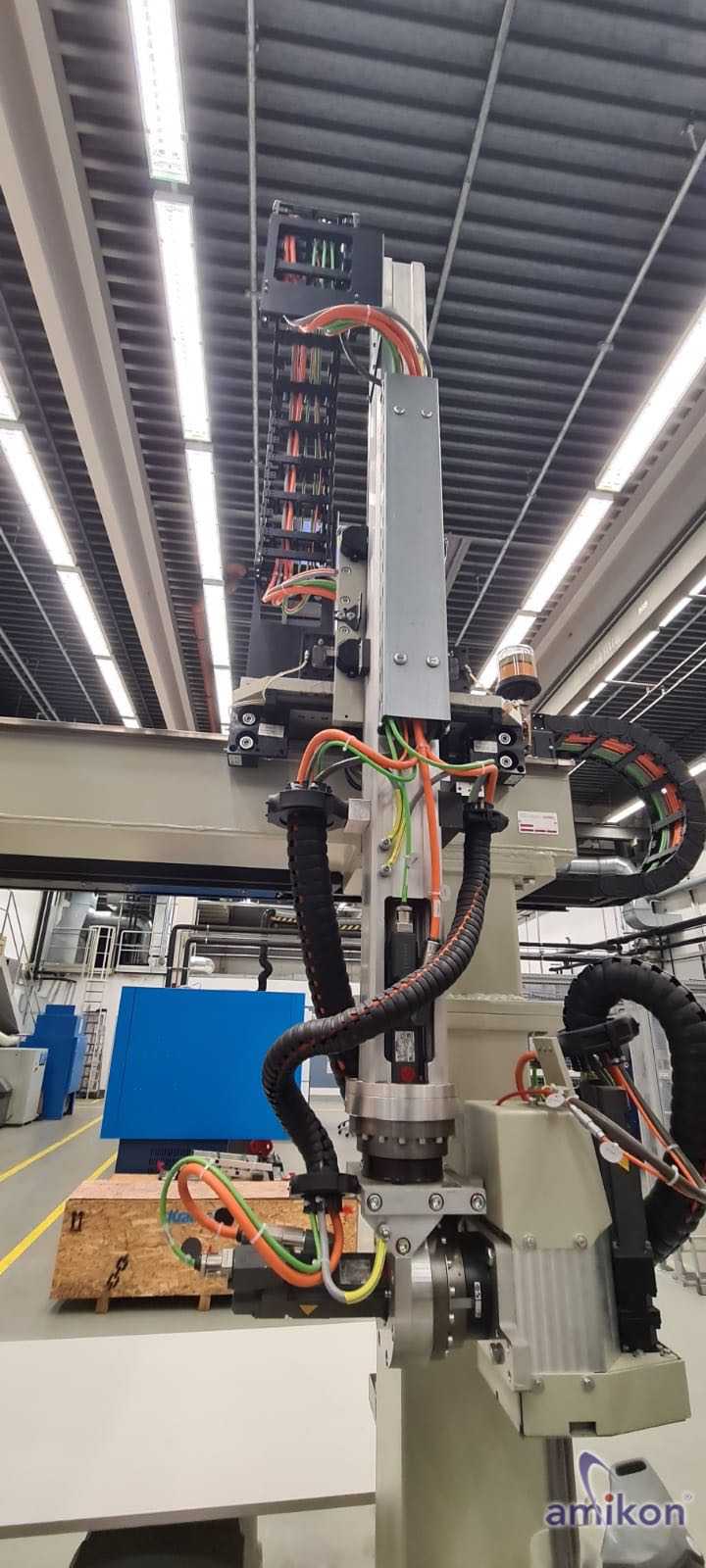

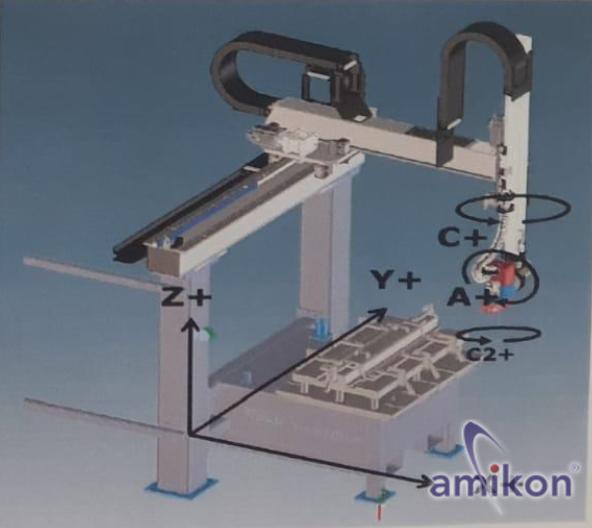

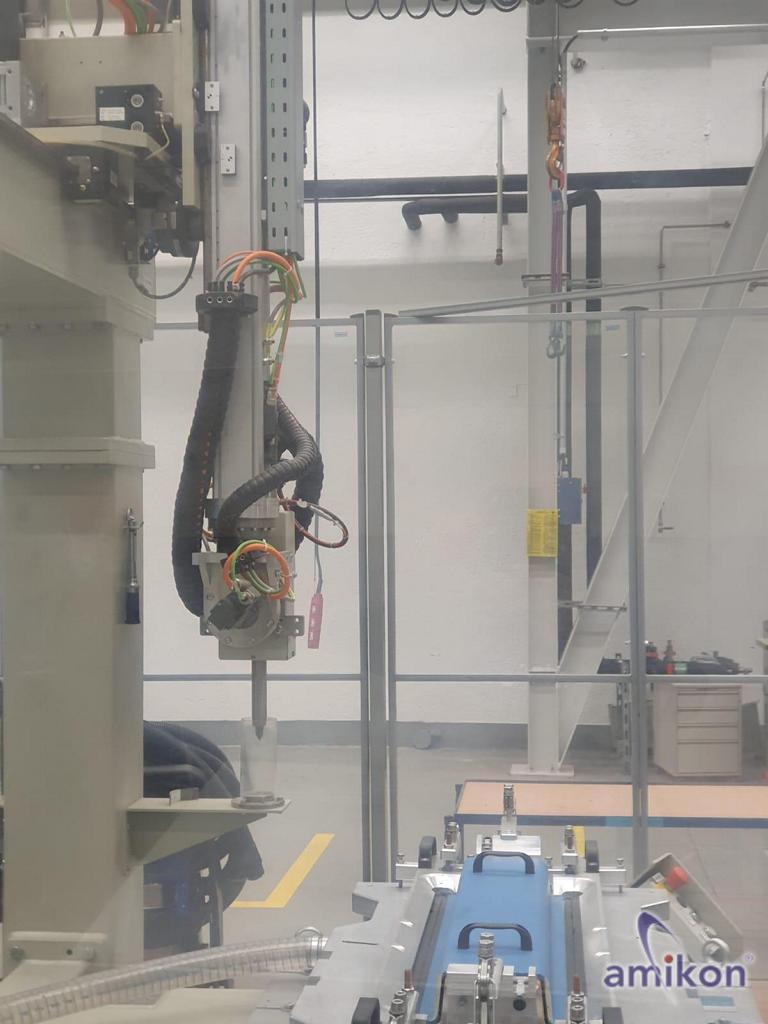

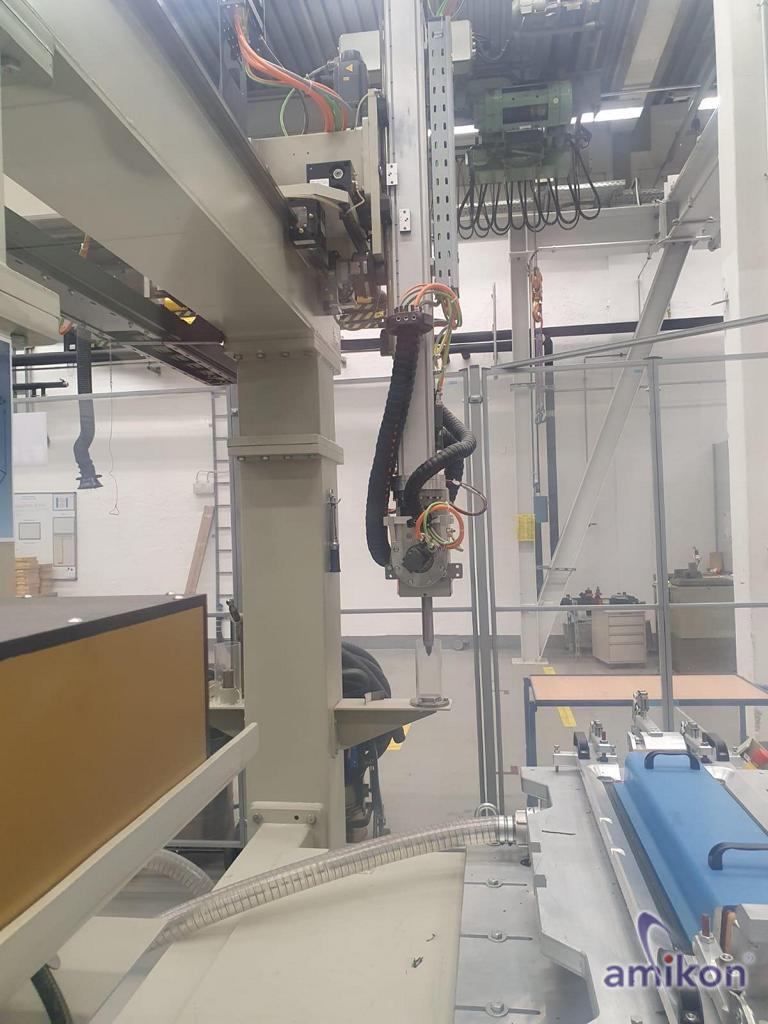

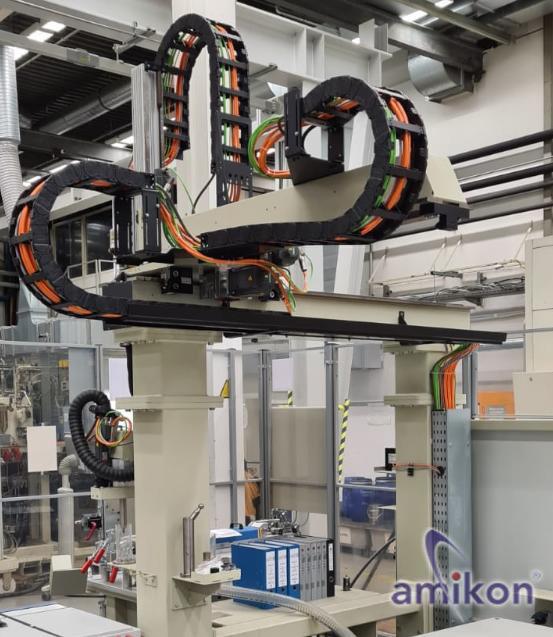

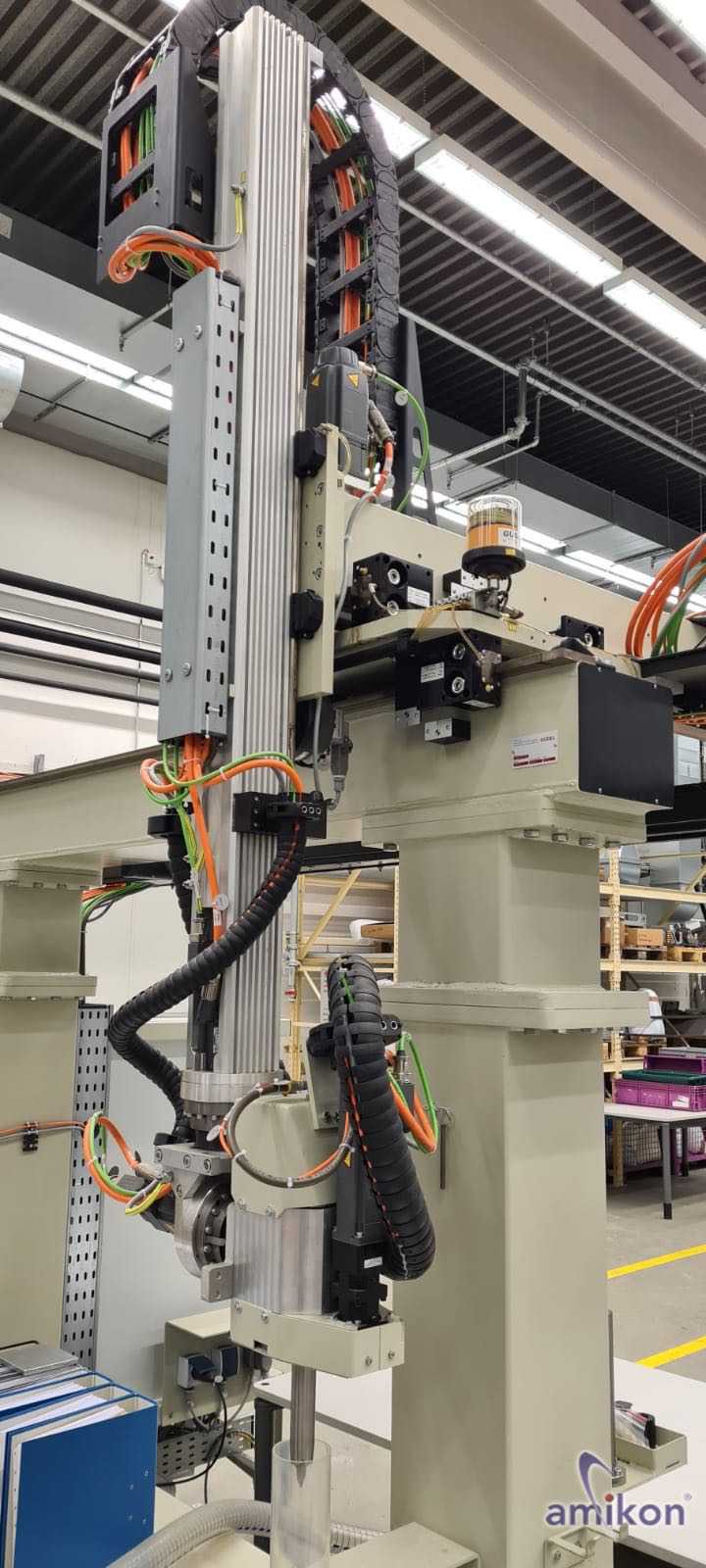

The linear axis portal allows for precise guidance of the ultrasonic cutter with minimal space requirements and simple kinematics.
With the Siemens CNC control 840 D, the trimming device can be programmed like a machine tool.
Tool corrections or path changes can be easily made directly at the machine.

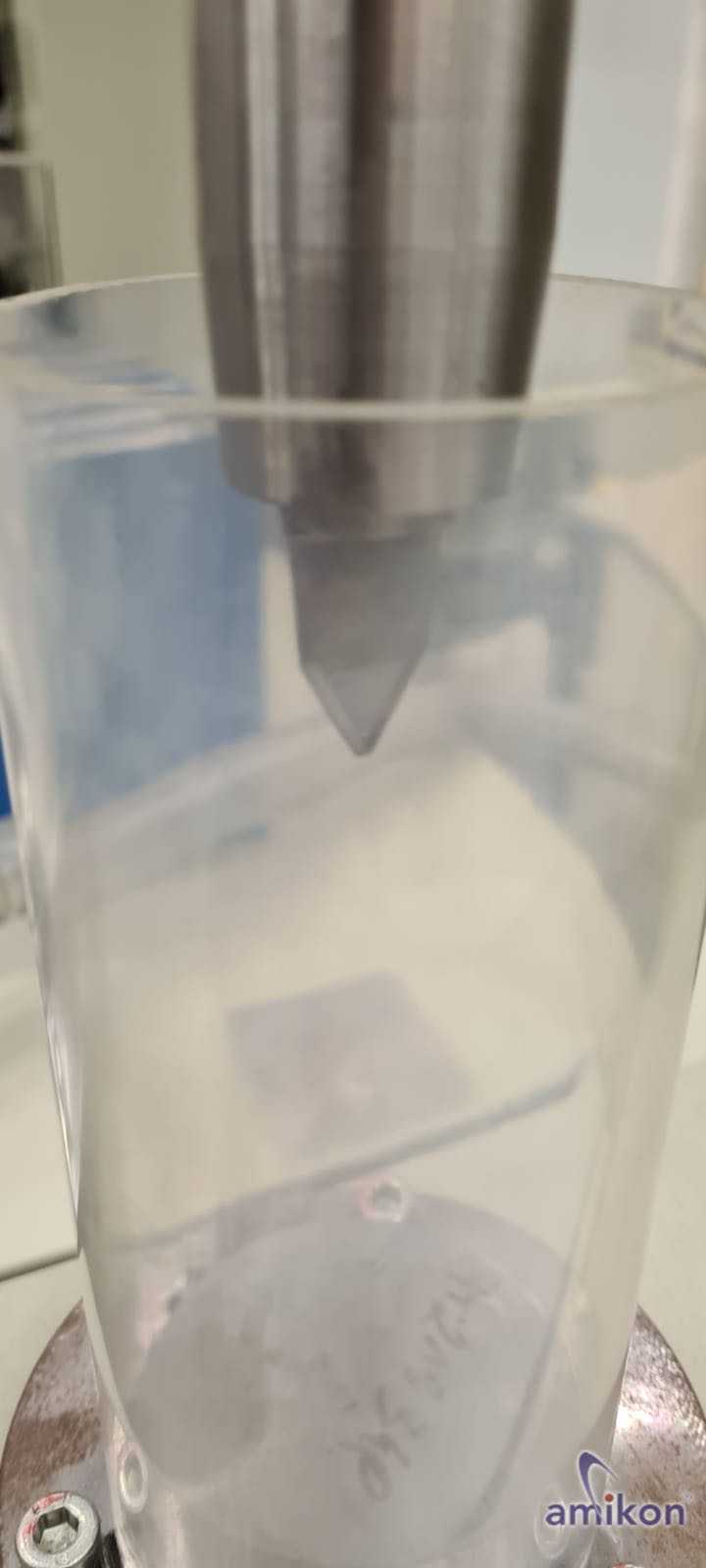

Standardly, the machine is equipped with a 20 kHz ultrasonic cutting unit.

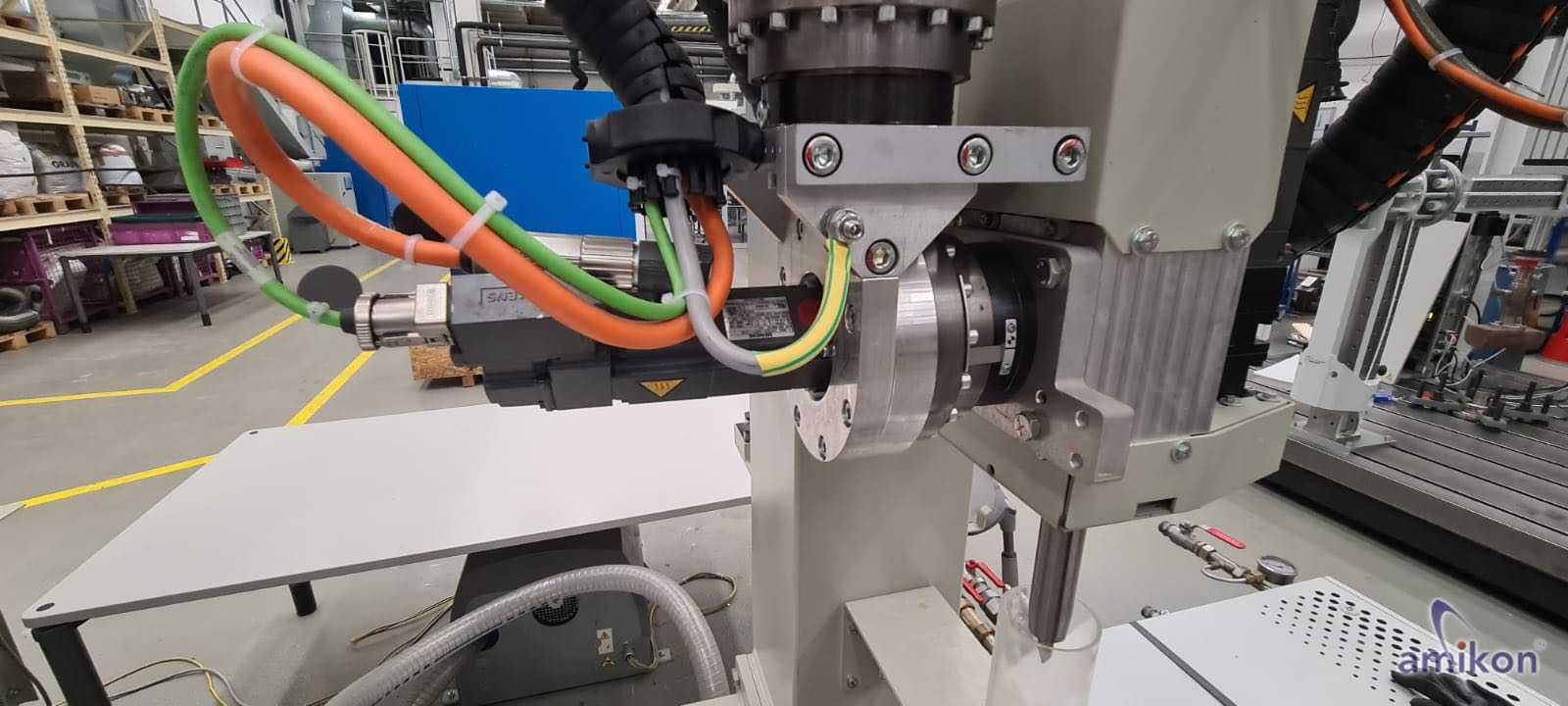

However, it can also be equipped with alternative systems. The cutter is equipped with a separate rotary axis,
to cut tight radii and save other axis movements (5 + 1 axes).

Technical data:

Machine data

Max. component length: 1,000 mm
Max. component width: 900 mm
Max. component height: 400 mm
Path repeat accuracy: ± 0.1 mm
Positioning accuracy: ± 0.2 mm
Load capacity: approx. 30 kg
E-control: Siemens Sinumerik 840D sl

Technical data of the complete system:

Fill 5-Axis Guided CFRP Trimming System Type: SM - 03

Electricity:

Mains voltage: 3 x 400 V AC
Mains frequency: 50 Hz
Rated current: 30 A
Fuse: min. 50 A / max. 63 A
Control voltage: 24 V DC

Pneumatics:

Air quality class: according to ISO 8573-1:2010
Inlet air: 5/6/4
System pressure: min. 6 bar
Supply connections
Illustrations in “Connection Diagram” on page 3/7.

Noise: Continuous sound pressure level: 80 dB(A)

Dimensions: Length: approx. 3920 mm Width: approx. 3400 mm Height: approx. 3500 mm

Weight: Total weight: approx. 1500 kg

Coating:

Base frame pebble gray: RAL 7032
Cross structures pebble gray: RAL 7032
Moving parts pebble gray: RAL 7032
Control cabinets light gray: RAL 7035

Condition: used

Scope of delivery: (See image)

(Changes and errors in technical data are reserved!)

Further questions can be answered by phone.
