Werth SCOPE- CHECK 200 3D Coordinate Measuring Machine

Werth SCOPE-CHECK 200 3D Coordinate Measuring Machine

Here we offer you a Werth SCOPE-CHECK 200 3D coordinate measuring machine.

Applications and Recommendations:

The Werth SCOPE-CHECK is an optical 3D coordinate measuring machine with a modular design for
non-contact, CNC-controlled measurement.

The Werth SCOPE-CHECK is equipped with three independent, continuously adjustable types of illumination as well as
a motorized 10x zoom lens. Magnifications from 0.5x to
5x are available. Additionally, the use of various telecentric measuring objectives is possible.
This makes the device suitable for almost all applications.

Design:

Construction / Design / Optical Measuring Device
Drive Type / Ball screw drive and servo motors
Connections / 230 V / 50Hz

Machine Specifications:

Measuring Range / 200 mm / 150 mm / 150 mm (X/Y/Z)
Length Measurement Uncertainty E1 / > (1.8 + L/120) µm (L in mm)
External Dimensions / 1000 mm / 1600 mm / 1400 mm (W/D/H)
Clamping Range X Direction 570 mm Y Direction 260 mm
Max. Workpiece Height Z 100 mm
Max. Workpiece Weight (with compliance to specific length measurement deviation) 20 kg
Machine Weight / Approx. 100 Kg
Resolution / 0.5 µm
Zoom Range / 0.5x-5x
Ambient Temperature Measurement Operation / 20°C ± 2%

Software:
Computer with Windows XP and system-specific measurement software WinWerth

Documents:
The following documents are available:
General Operating Manual
Declaration of Conformity
User Manual WinWerth
User Manual DMIS Statements
User Manual Conversion Tool
User Manual First Article Inspection Report
User Manual Werth Fastmeas
User Manual CAQ Connection
User Manual Calibration Program TCALIB 2
User Manual Software Function Raster Scanning
User Manual Axis Calibration Program
User Manual BestFit

The machine received extensive service including repairs from the manufacturer in May 2023.

Type: Werth SCOPE-CHECK 200

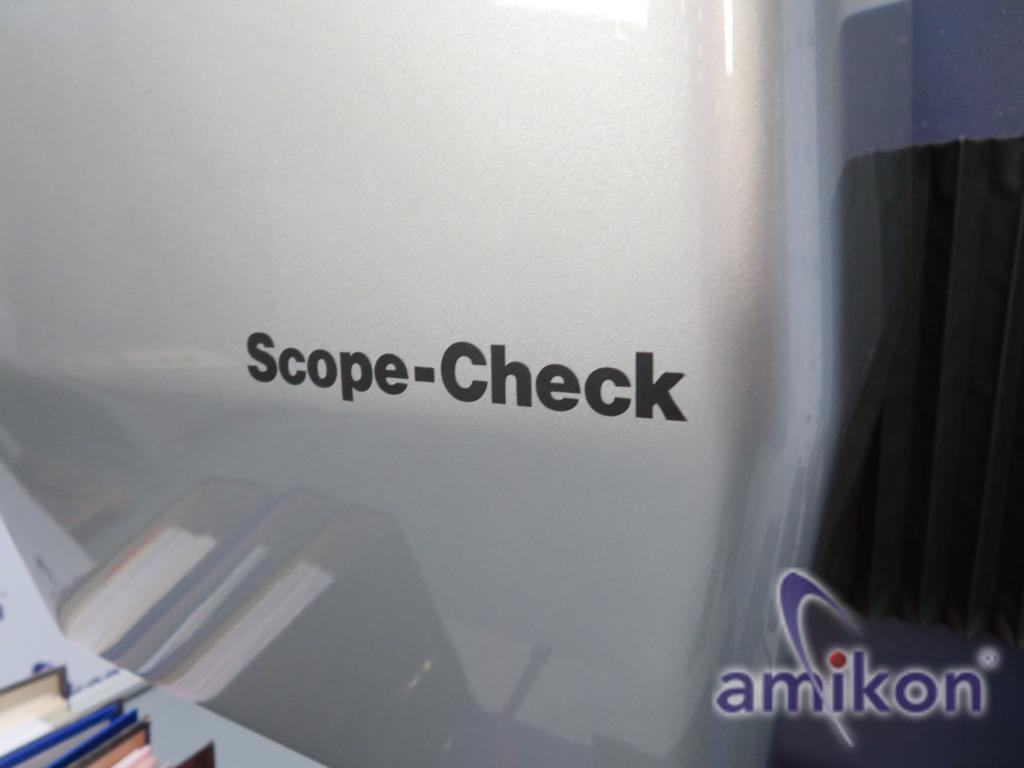

Scope of Delivery: (Werth Coordinate Measuring Machine with accessories as shown)

Condition: used

(Changes and errors in technical data are reserved!)

Please inquire about transport options before purchase.

We would be happy to answer any further questions by phone.
