Beckhoff Power Supply Terminal EL9410

Beckhoff Power Supply Terminal

Here we offer you a Beckhoff power supply terminal.

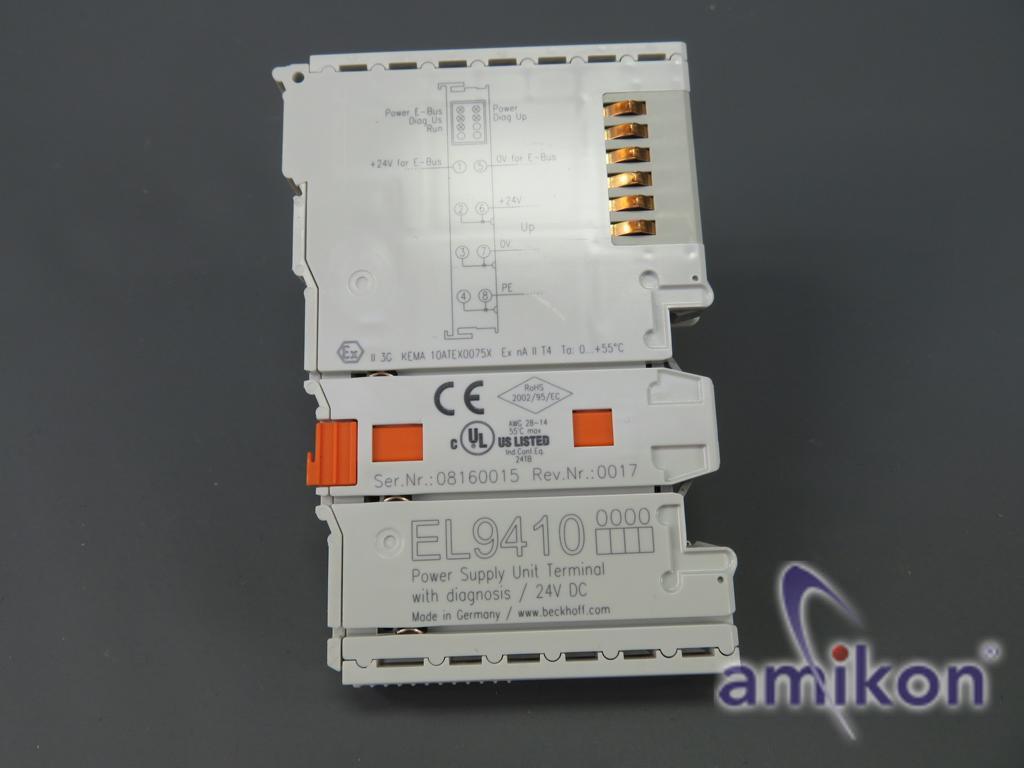

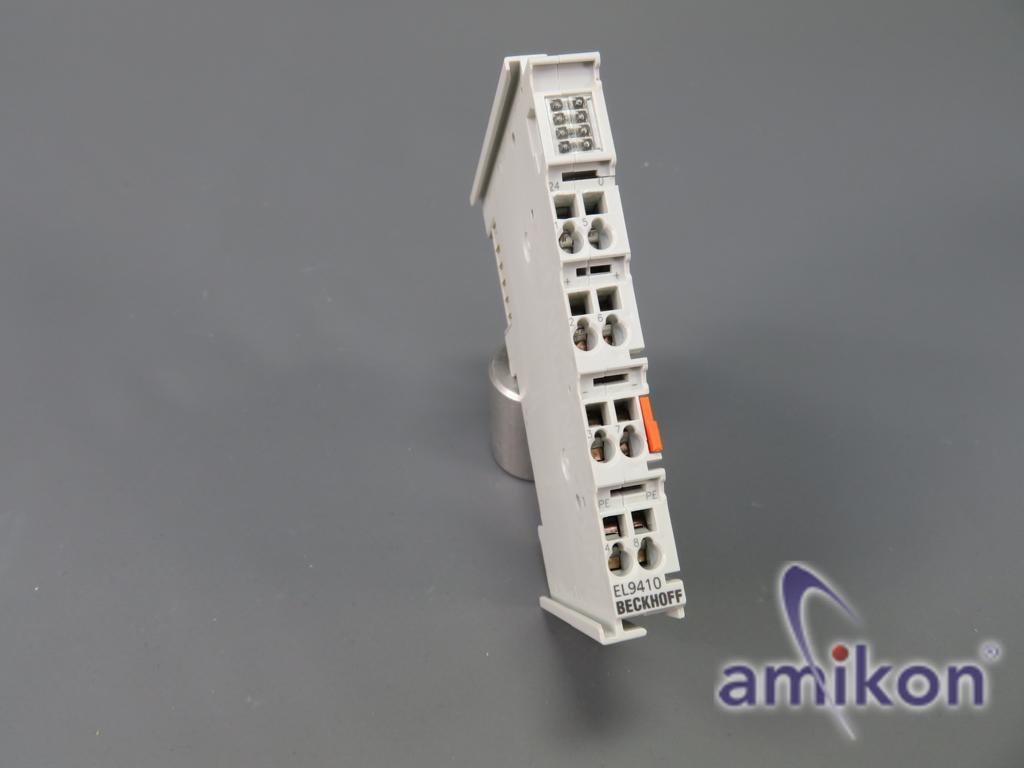

Beckhoff EL9410 | Power Supply Terminal for E-Bus Refreshing, with Diagnostics

The EL9410 power supply terminal is used to refresh the E-Bus, through which data exchange between EtherCAT couplers and terminals takes place.
Each EtherCAT terminal requires a specific current from the E-Bus (see technical data: "Current consumption E-Bus").
This current is supplied to the E-Bus by the power supply of the respective EtherCAT coupler.
In configurations with a large number of EtherCAT terminals, the EL9410 can be used to increase the power supply of the E-Bus by 2 A.
The EL9410 features diagnostics, which are displayed via LED and in the process image.

Type: EL9410

Condition: used

Scope of delivery: (See image)

(Changes and errors in the technical data, specifications are reserved!)

We would be happy to answer any further questions by phone.
