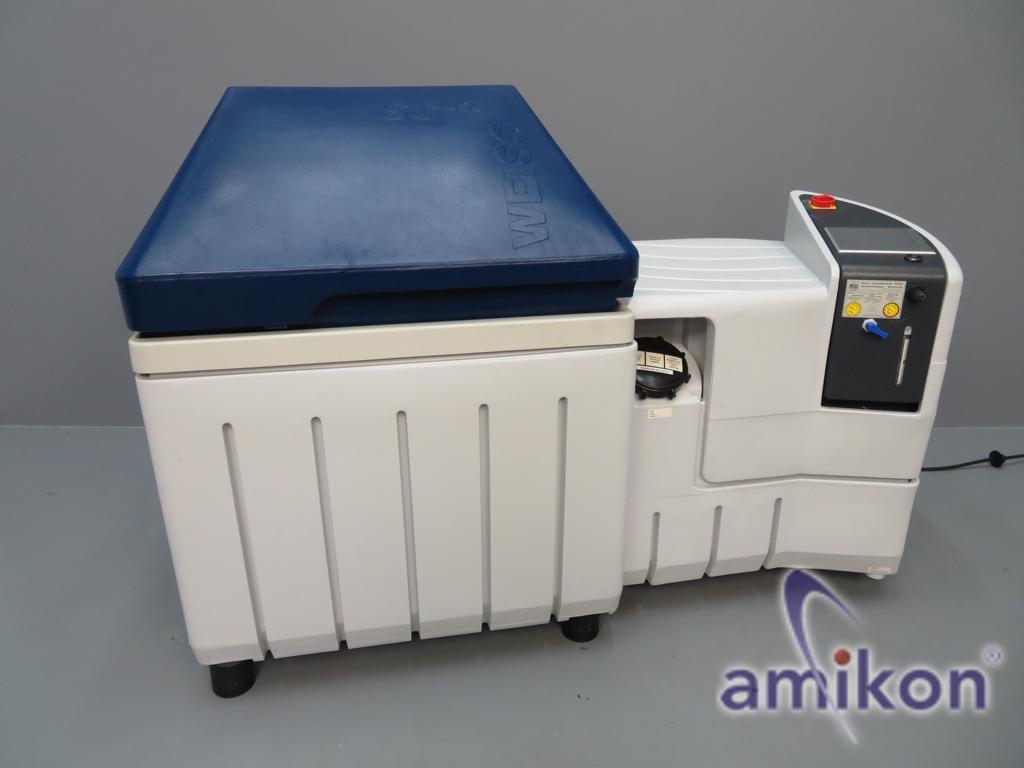

White salt spray chamber SC/KWT 450 22607631

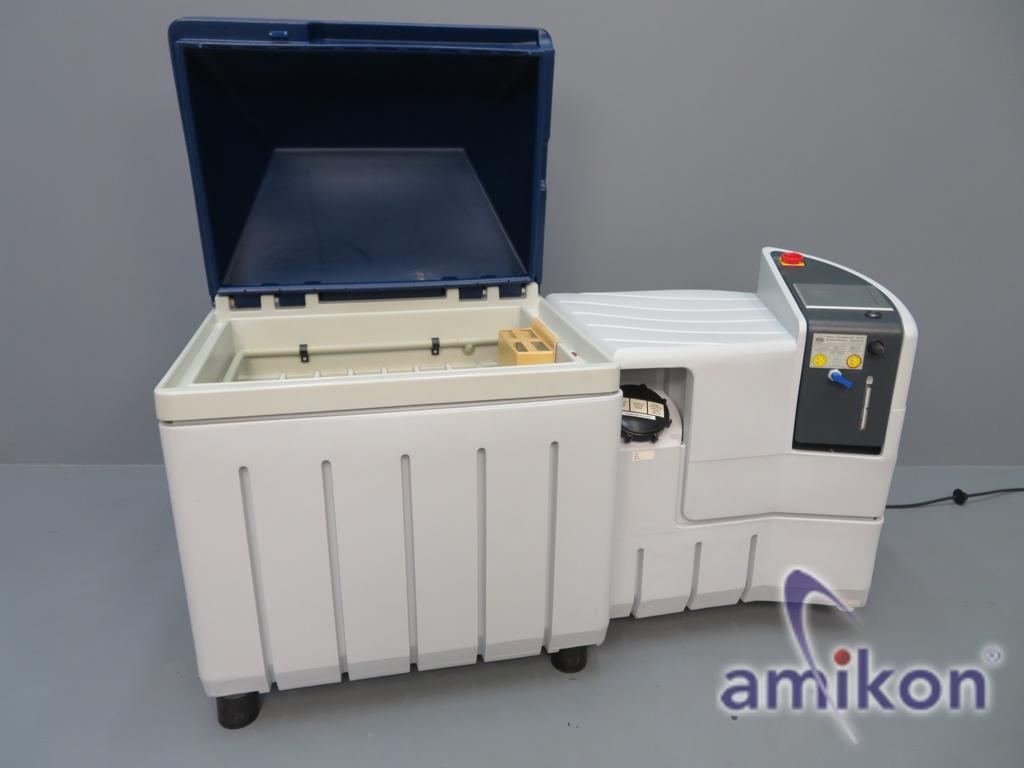

White Salt Spray Chamber

Here we offer you a White Salt Spray Chamber.

Technical Data:

Construction size: 450 liters

Test chamber volume 360 liters

max. load 100 kg

Brine storage tank 180 liters

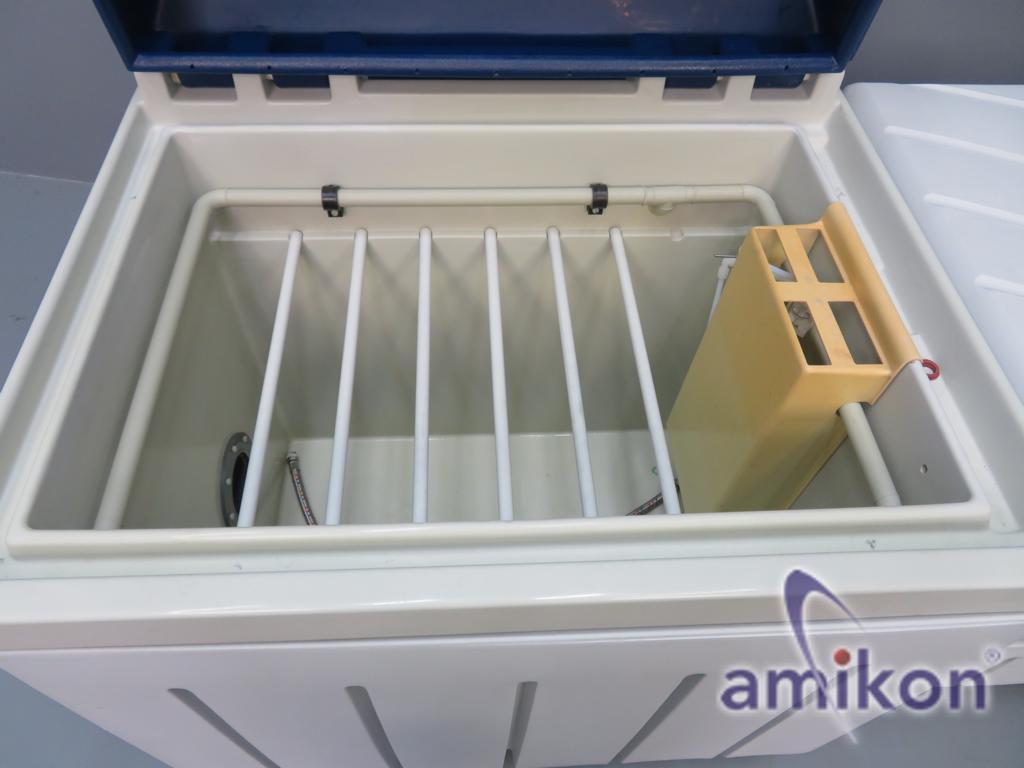

Test chamber dimensions:

Height without hood 740 mm, Width 850 mm, Depth 570 mm

Height with hood 1190 mm

External dimensions:

Height without hood 920 mm, Width 1930 mm, Depth 800 mm

Height with hood 1370 mm

Areas of application:

Corrosion tests:

Salt spray test: Room temp. up to +50°C

Condensate water test: Room temp. up to +45°C

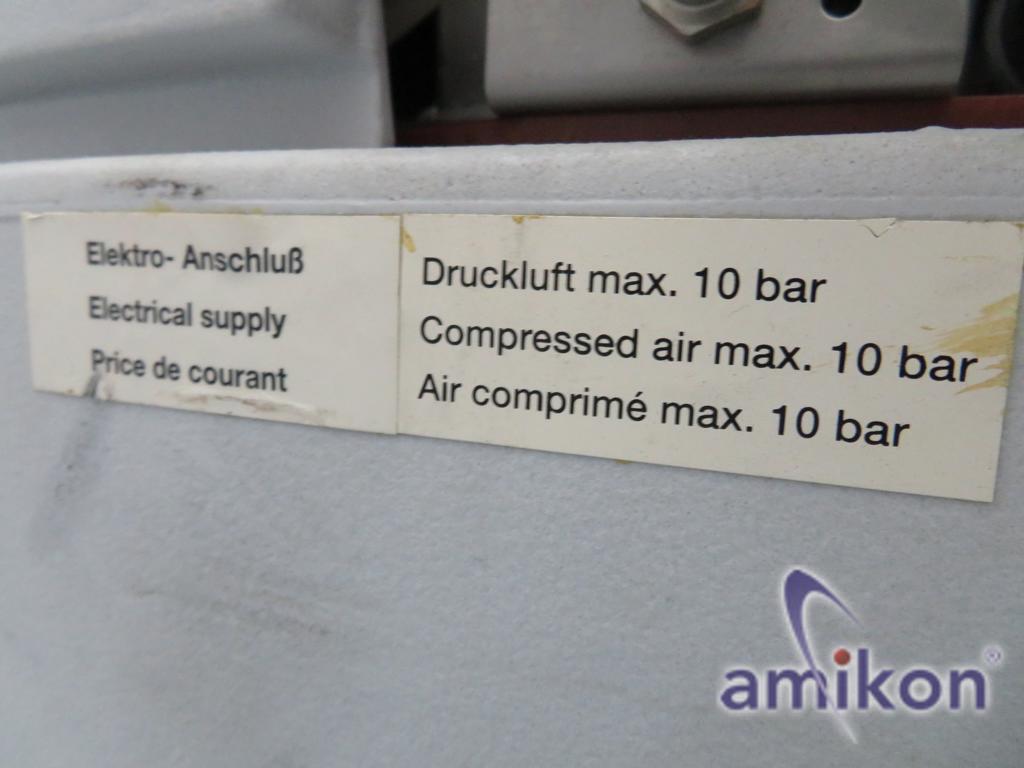

Voltage: 1/N/PE AC 230V ±10% 50Hz

Combination:

Salt spray test SS: DIN 50021

Condensate water test KFW: DIN 50017

Normal climate (ventilation): DIN 50014

Weight: 180 kg

Type: SC/KWT 450 / 22607631

Condition: used

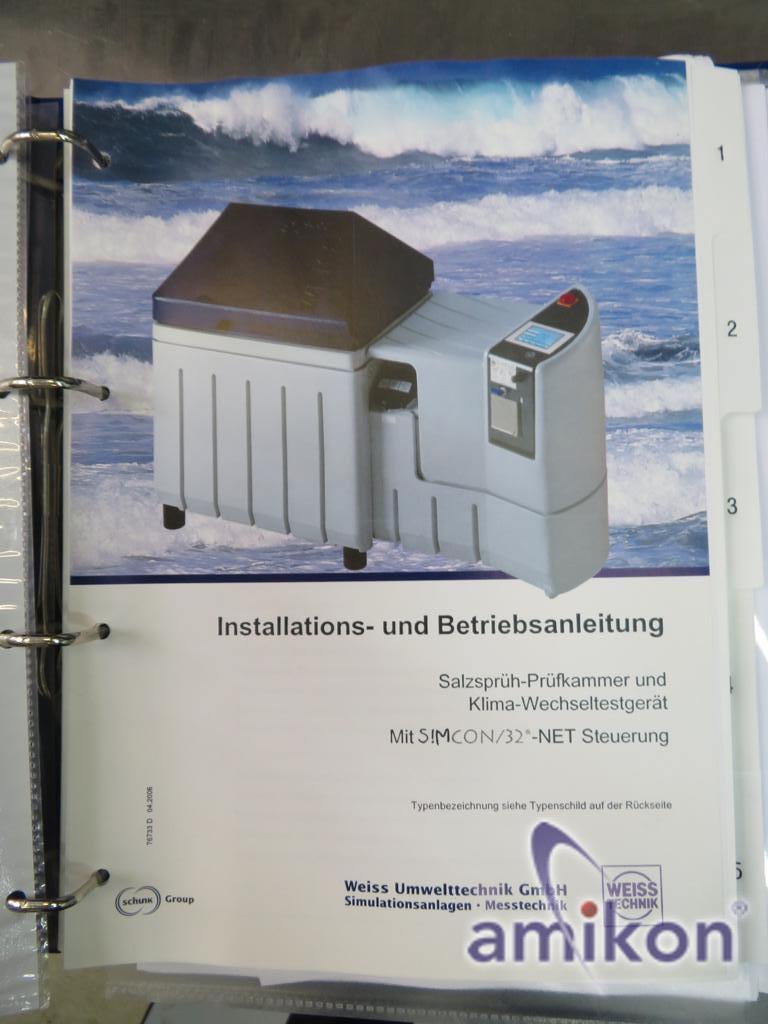

Scope of delivery: (See image)

(Changes and errors in the technical data are reserved!)
