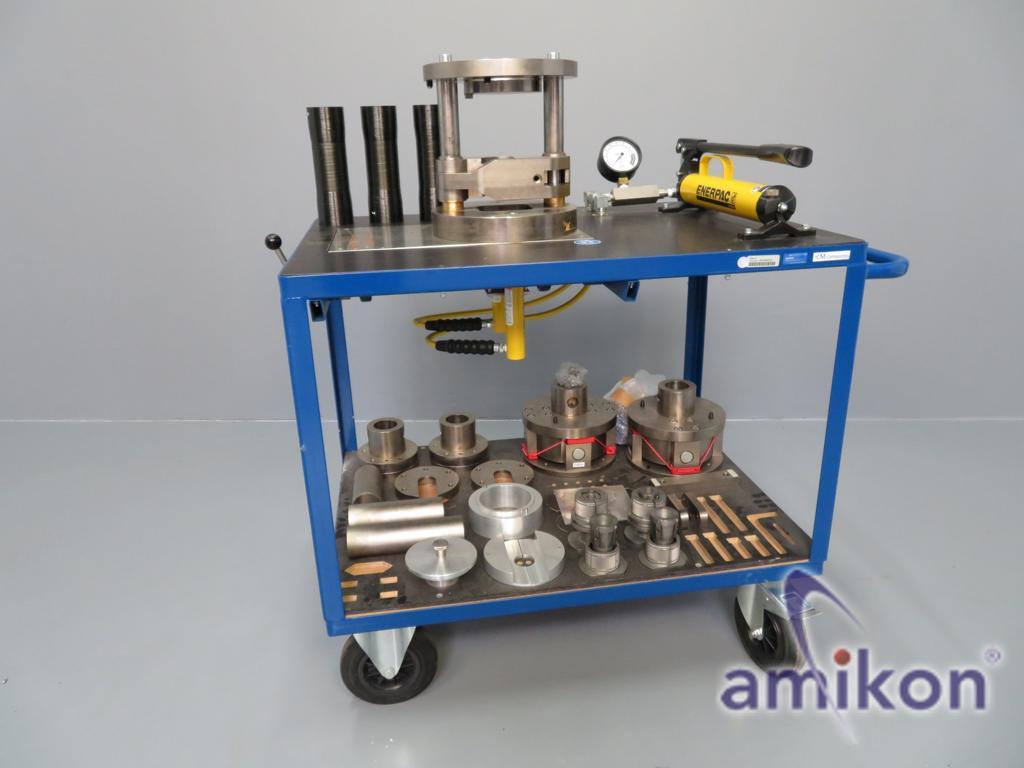

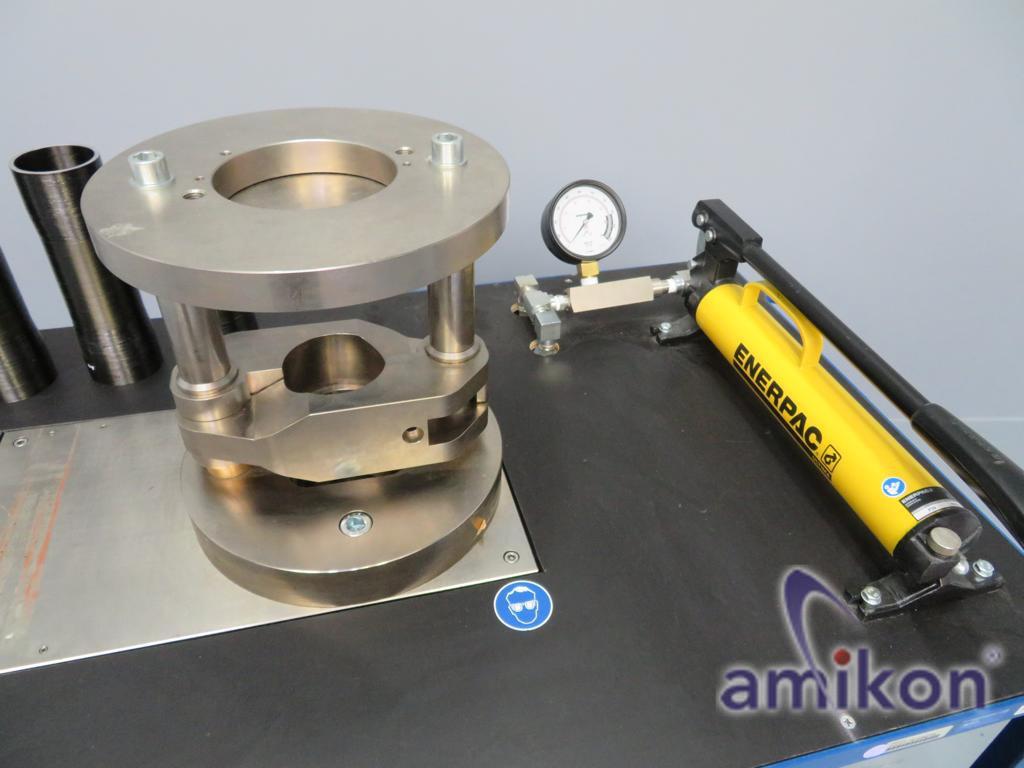

ZDT Cart for Tensile-Compression-Torsion Tests

Here we offer you a ZDT cart for tensile-compression-torsion tests.

Dimensions:

ZDT cart (L x W x H) in mm: approx. 1200 x 720 x 1260

Weights:

Total weight of ZDT cart (including delivered accessories): 320 kg

Weight per tensile head: 2.3 kg

Weight per compression head: 2.9 kg

Weight per universal joint (without ZDT flange): 35 kg

Operating Limits:

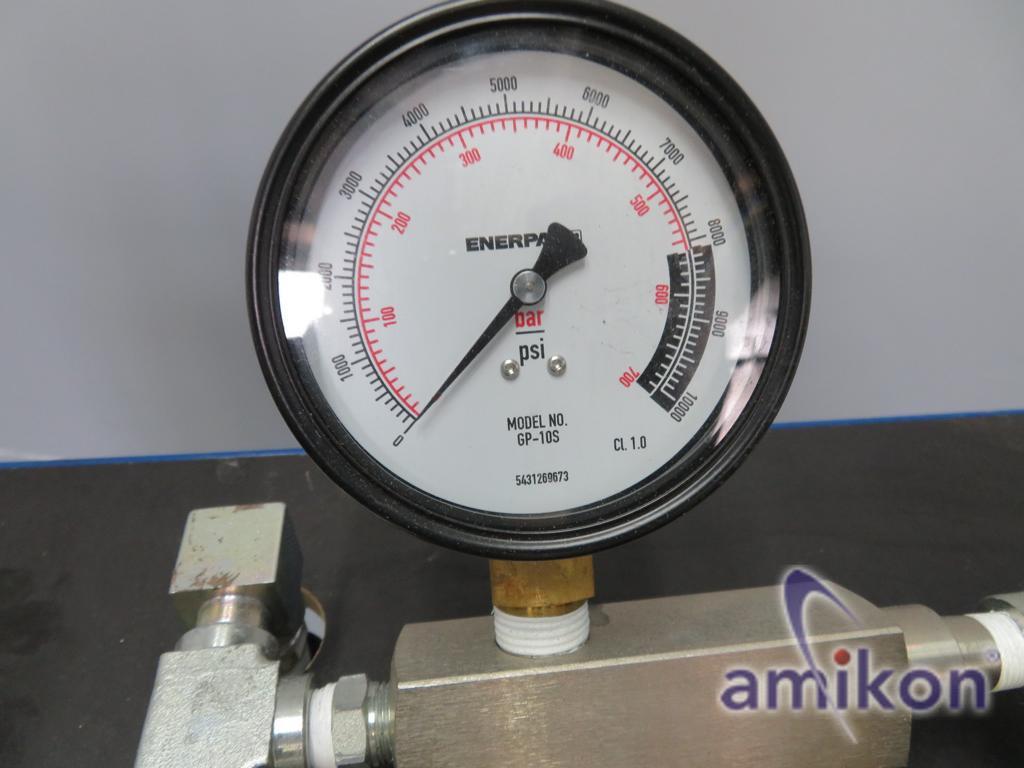

max. permissible pressure at the hand pump: 700 bar

max. permissible tensile load during the ZDT test: 250 kN

max. permissible compressive load during the ZDT test: 250 kN

max. permissible torque during the ZDT test: 2000 Nm

Recommended storage and operating temperature for the ZDT cart: +10 to +40°C

Recommended temperature limits for the universal joints: -30°C to +100°C

Recommended temperature limits for the tension heads: -40°C to +120°C

Operating Fluids:

Oil for hydraulics:

used grease for plain bearings and tension heads:

ENERPAC HF95X lithium-complex multi-purpose grease (K 2K-30 according to DIN 51502)

Type: ZDT cart (with accompanying information)

Condition: used

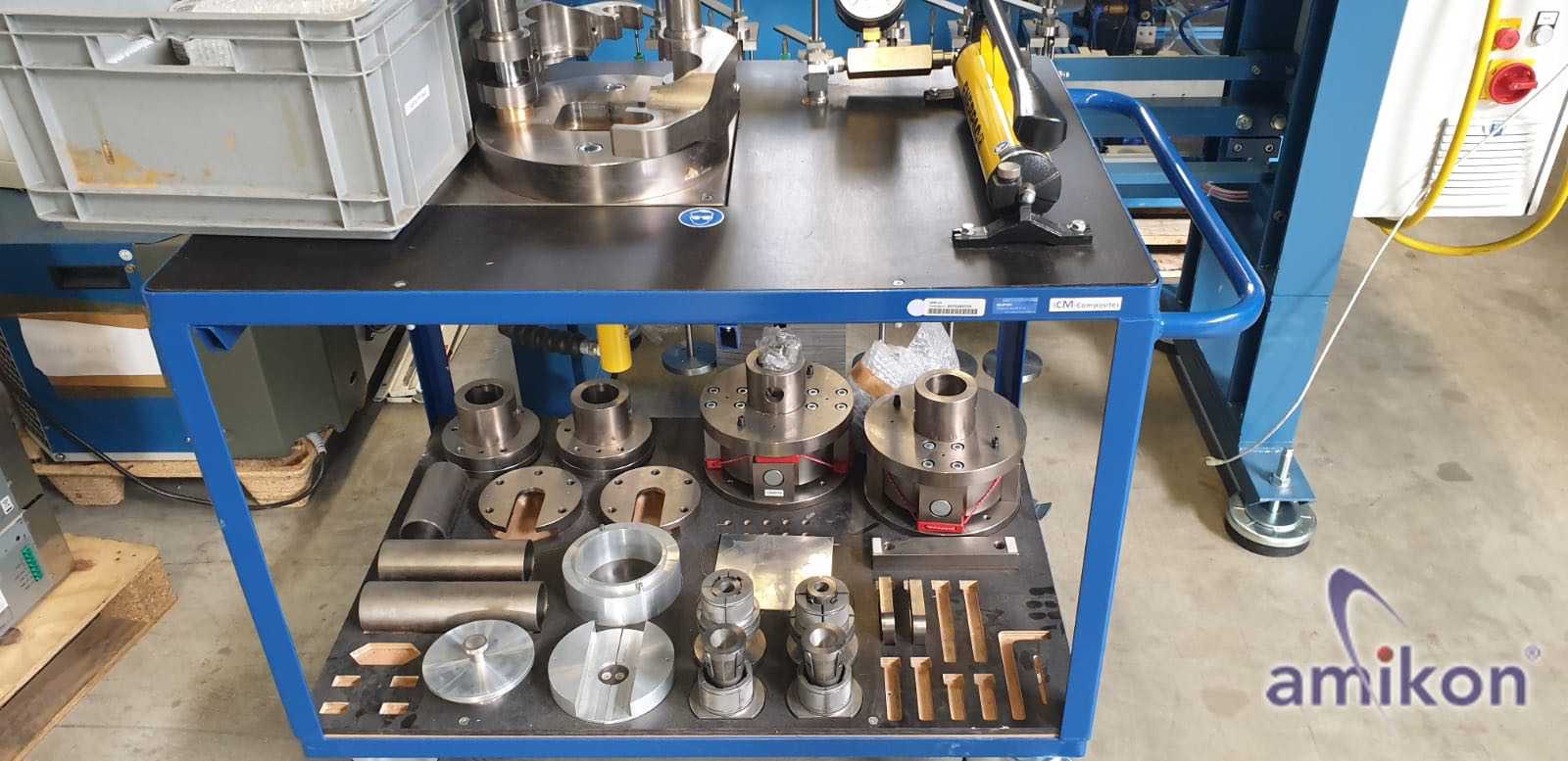

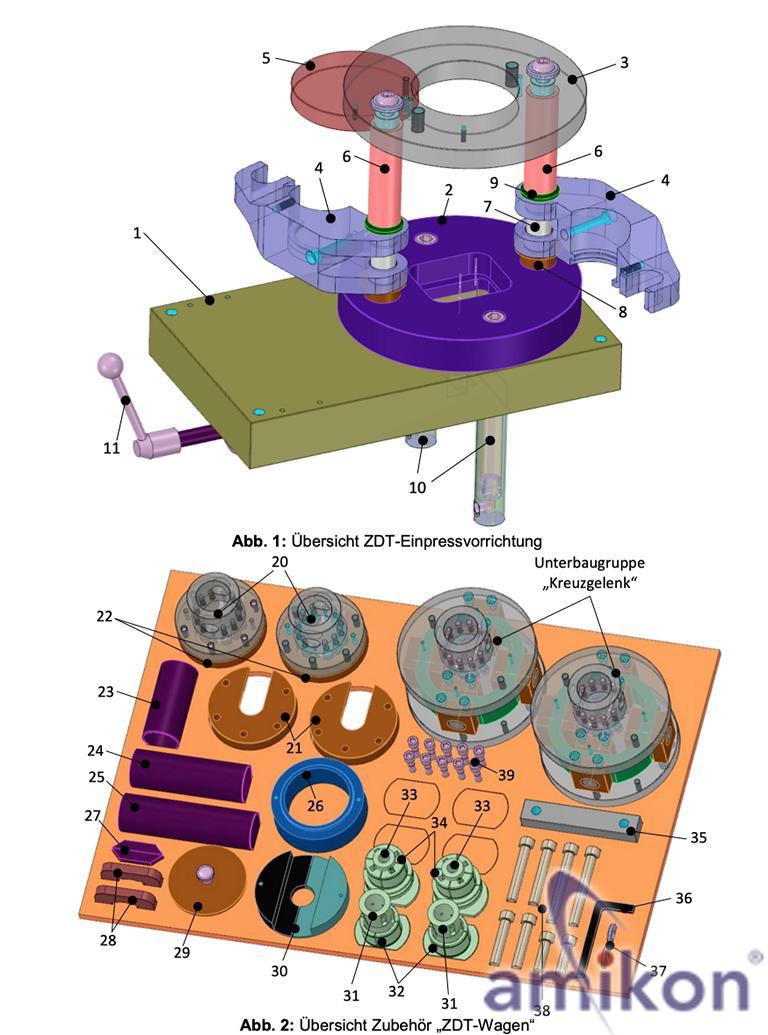

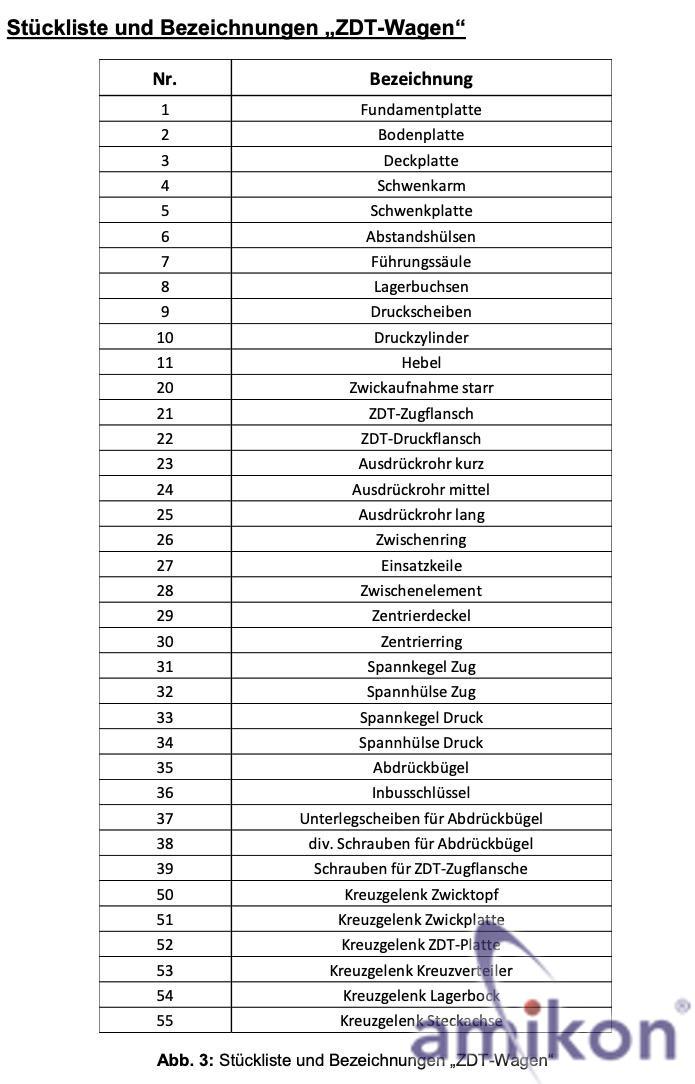

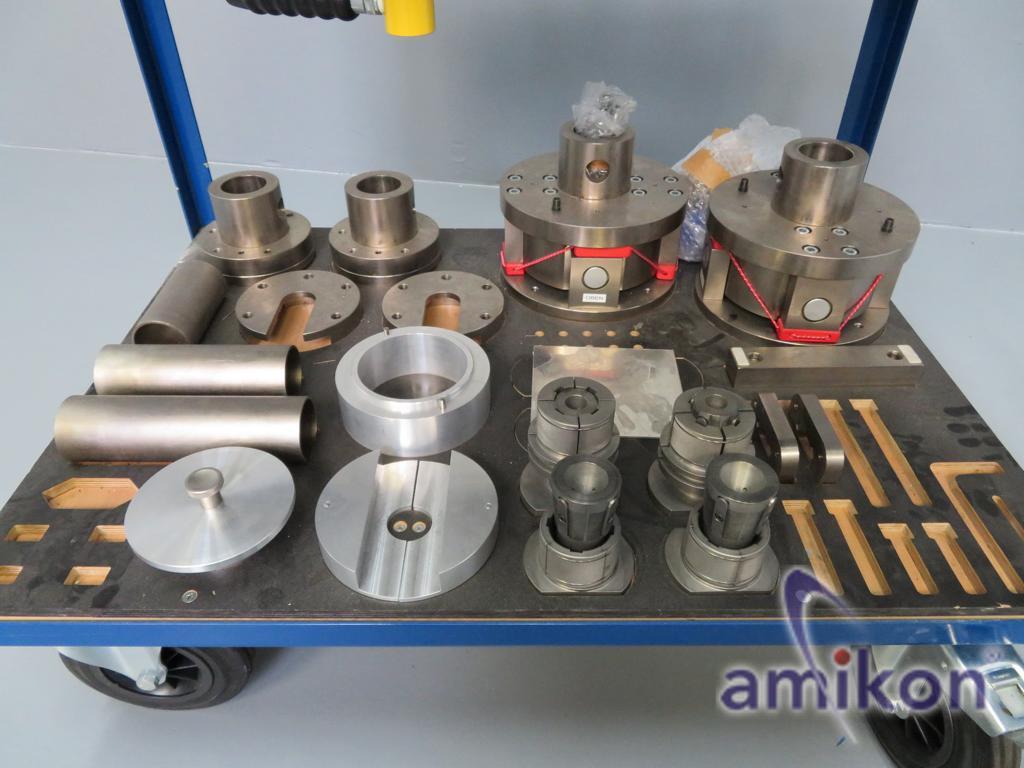

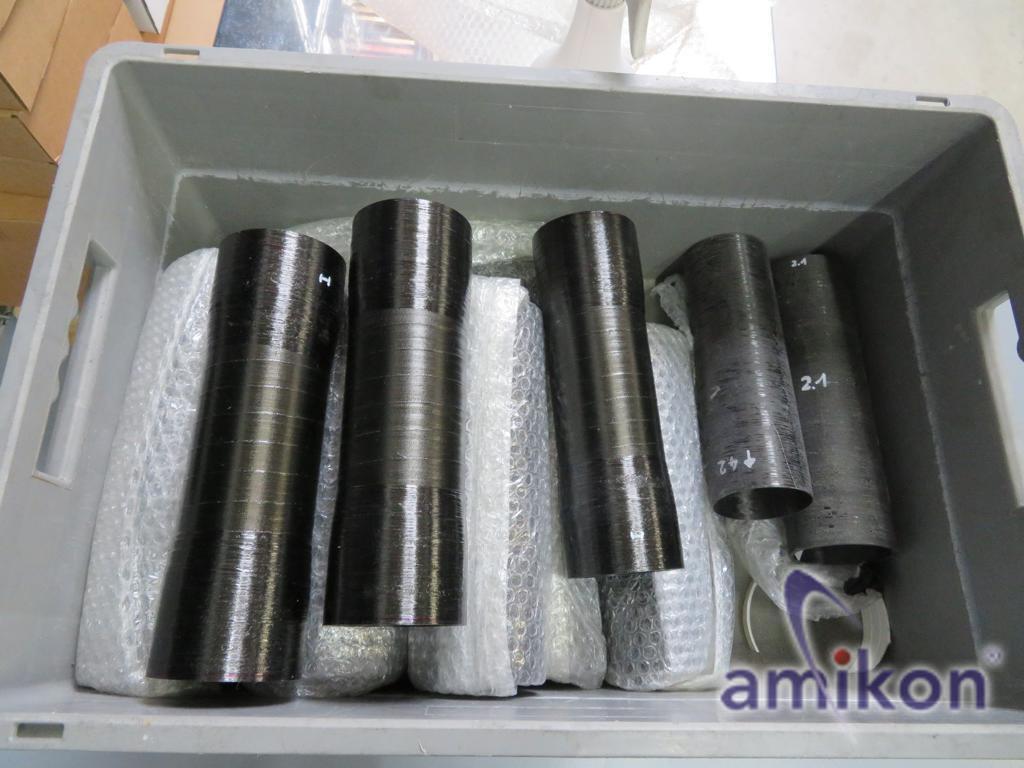

Scope of delivery: (See image)

(Changes and errors in technical data are reserved!)

We are happy to answer any further questions by phone.
