Astro-Med Data Acquisition Recorder Datenlogger Dash 8Xe

Astro-Med

Typ: Dash 8Xe

Datenlogger

-8 modulare Eingang Kanäle für jede Art von Signal
-Aufnahme direkt auf die Festplatte bei 200 kHz Abtastrate pro Kanal
-15-Zoll-Touch-Screen zur Datenanzeige, Überprüfung und Analyse
-Antriebssystem Fehlerbehebung
-Energiesystemüberwachung und Analyse
-Prozessablaufsteuerung & Timing
-Kfz-Prüfung
und mehr...

Beschreibung (auf Englisch):

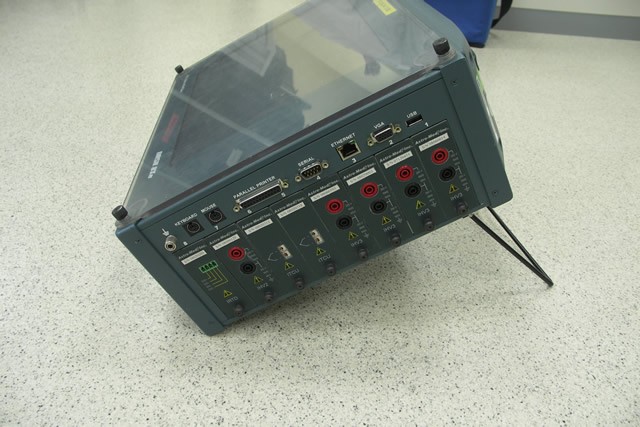

Modular high performance inputs
The Dash 8Xe is designed for direct input from a wide variety of sensors and signals, with
selectable input modules for differential voltage, high voltage, DC bridge, thermocouples,
RTDs, ICP ® transducers and more. With individual 16-bit A/D converters sampling each
channel at 200,000 samples per second, you are assured of high accuracy, high
resolution recording. Programmable, digital filtering allows you to filter out noise and
other unwanted signals so you will only see data that is important to you.

Triggered data capture and high speed scope recording in one system
If you are interested in long-term trend recording, traditional data capture, or
high speed oscilloscope recording, the Dash 8Xe has it all. All eight signals can be
captured to a dedicated 36 Gbyte hard drive so you’ll never have to worry about
running out of memory. Sample rates are selectable from one sample per minute
to 200,000 samples per second per channel, allowing you to maximize memory
and eliminate unneeded data points. For high speed recording, the Dash 8Xe
offers 4 additional channels of oscilloscope recording with sample rates up to
10 MHz per channel.

Real-time data viewing with color, touchscreen display
The 15-inch color display of the Dash 8Xe lets you view all of your signals as
they occur, allowing you to make important decisions when you need to – in
real-time. From a scrolling display of discrete channels to overlapped waveforms or
numeric datalogger, the Dash 8Xe gives you the information you need in the format
that you want. The Dash 8Xe’s large color display makes it easy to view multiple
data windows on one screen. With its intuitive touchscreen interface, you’ll be up
and running in no time.

Advanced data analysis
From basic data review to advanced data analysis, the Dash 8Xe has it all. Captured data
can be reviewed on the screen, while cursors make timing and amplitude measurements
a snap. For even more precise measurements, use the Dash 8Xe’s integral zoom and
filter windows. Add our optional FlexPro™ data analysis and presentation software,
and you have a complete data acquisition and analysis system in one small box.

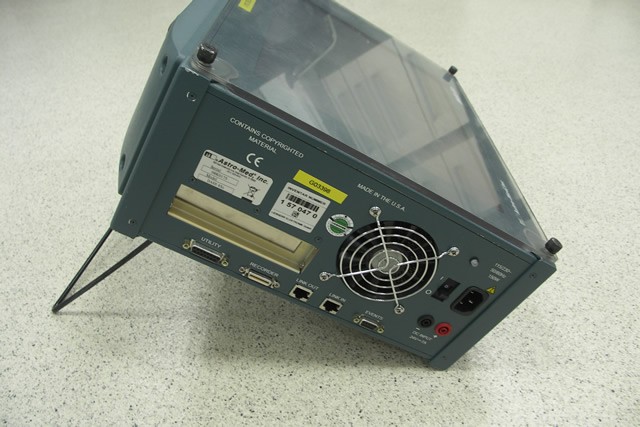

Use your own PC to setup the Dash 8Xe and upload data for review
The Dash 8Xe has an integral 10/100/1000BaseT Ethernet interface to make importing data to your PC as easy as
ever. Simply connect your Dash 8Xe to a network and upload some or all of your data files. Our PC-based
AstroVIEW X and Dash 8Xe Offline programs allow you to setup your recorder and upload data files to your PC.
For applications requiring transportable media, the Dash 8Xe’s USB port opens up a world of possibilities. Connect
an external CD-RW or an external DiskOnKey® storage device, and archive hundreds of Mbytes of data at once.

Zustand: gebraucht / used

Lieferumfang: (Siehe Bild)

(Änderungen und Irrtümer in den technischen Daten, Angaben sind vorbehalten!)

Weitere Fragen können wir gerne am Telefon für Sie beantworten.
